Upper control panel control unit, component description - GF54.21-P-6040GM

MODEL 164.1 as of model year 2009/YoM 08 model refinement package

MODEL 164.8, 251.0/1 as of model year 2009/YoM 08

Shown on model 164.8 up to 30.6.11

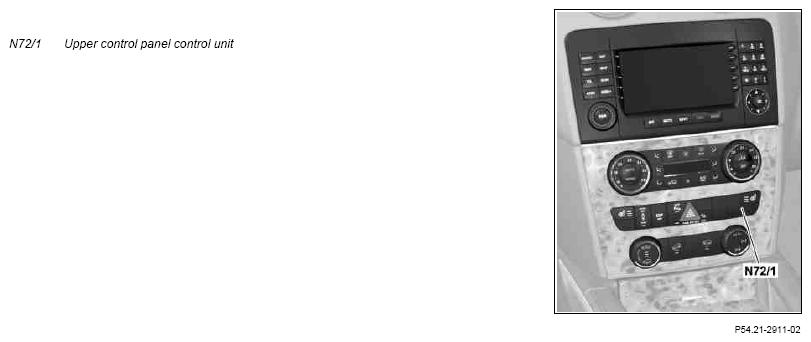

Fig 1: Identifying Upper Control Panel Control Unit Component - Shown On Model 164.8
G10116962Courtesy of MERCEDES-BENZ USA

Location

The upper control panel control unit is located in the center of the instrument panel.

Model 164 (except 164.195) up to 30.6.11, shown without code (430) Off-road package

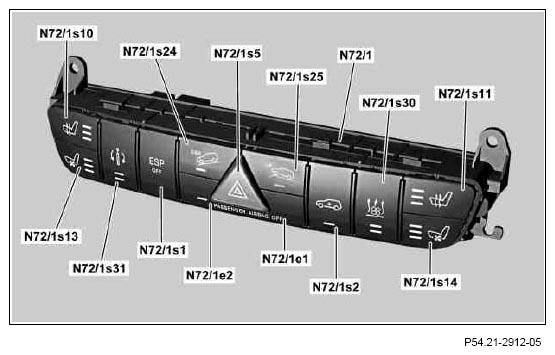

Fig 2: Upper Control Panel Control Unit Component Location
G07005519Courtesy of MERCEDES-BENZ USA

Model 164 (except 164.195) as of 1.7.11, shown on model 164.8 with code (430) Off-road package

Fig 3: Upper Control Panel Control Unit Component Location
G10116964Courtesy of MERCEDES-BENZ USA

Design (model 164 (except 164.195))

The upper control panel control unit contains the following operating and display components:

Model 164.195, shown up to 30.6.11

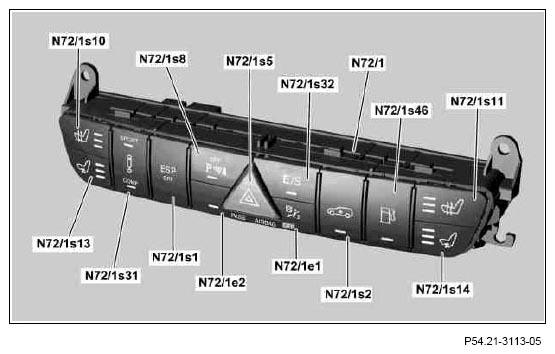

Fig 4: Upper Control Panel Control Body Unit Component Location
G07005520Courtesy of MERCEDES-BENZ USA

Body (model 164.195)

The upper control panel control unit contains the following operating and display components:

Model 251 up to 30.6.11

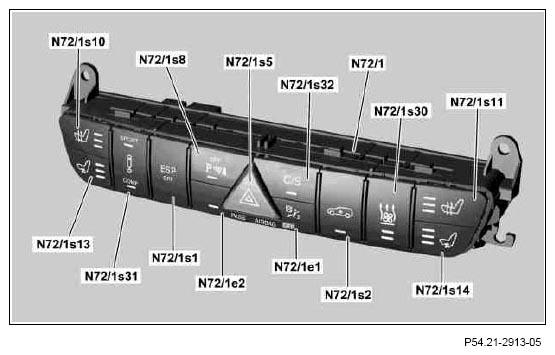

Fig 5: Identifying Upper Control Panel Control Body Unit Component
G07005521Courtesy of MERCEDES-BENZ USA

Model 251 as of 1.7.11

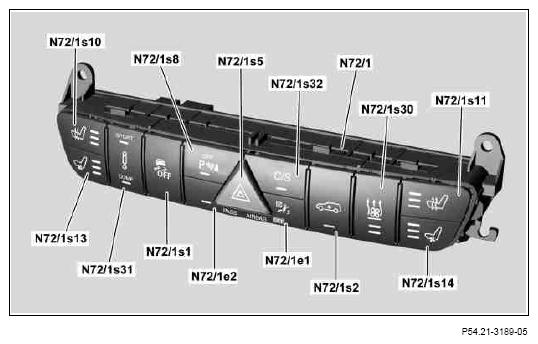

Fig 6: Identifying Upper Control Panel Control Body Unit Component
G10116967Courtesy of MERCEDES-BENZ USA

Structure (model 251)

The upper control panel control unit contains the following operating and display components:

Task

The upper control panel control unit has the following tasks:

Reading in of switches and signals

The input factors are read in via the following connections:

Direct line

The signals of the switches located on the upper control panel control unit are then read in directly by it.

Instrument panel LIN

The signals from the following component are read-in over the instrument panel LIN:

Interior CAN

The signals are read in by the upper control panel control unit over the interior CAN.

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

Components are actuated via the following lines:

Direct line

The following components are actuated via direct lines:

Instrument panel LIN

The following components are actuated via the instrument panel LIN:

Interior CAN

The signals are sent by the upper control panel control unit over the interior CAN.

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

REFER TO SYSTEM WIRING DIAGRAMS Wiring diagram for upper control panel and lower control panel control unit Model 164 PE54.21-P-2118-97MAA
REFER TO SYSTEM WIRING DIAGRAMS Wiring diagram for upper control panel control unit Model 251 PE54.21-P-2119-97RAA
