Lower control panel control unit, component description - GF54.21-P-6060GM

MODEL 164.1 with CODE (430) Off-road package as of model year 2009/YoM 08 model refinement package

MODEL 164.8 as of model year 2009/YoM 08

Shown on model 164.1 with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS up to YoM 11)

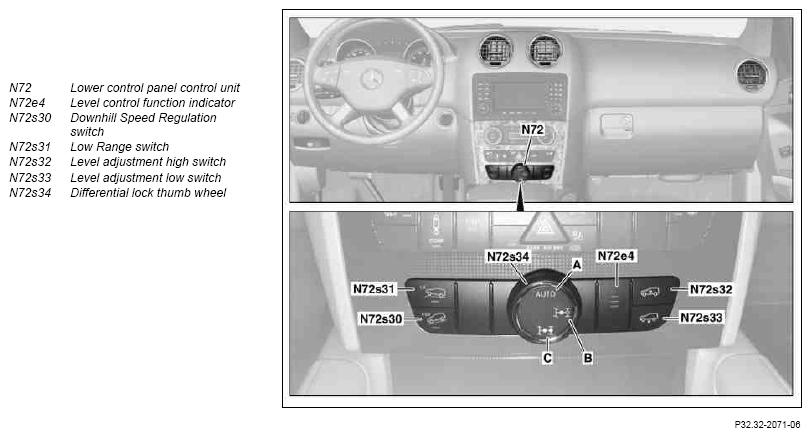

Fig 1: Identifying Lower Control Panel Control Unit Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.8 (up to YoM 11)

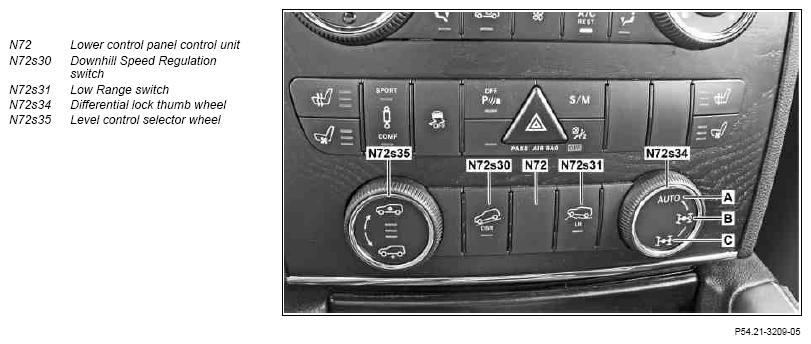

Fig 2: Identifying Lower Control Panel Control Unit Component - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

Shown on model 164.8 (as of YoM 11)

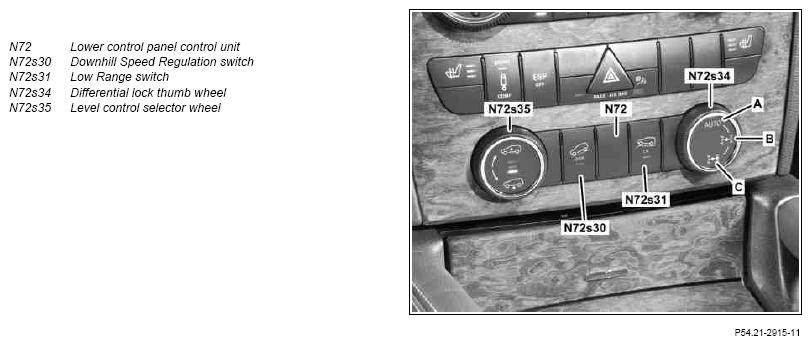

Fig 3: Identifying Lower Control Panel Control Unit Component - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

Location

The lower control panel control unit is located underneath the upper control panel control unit (N72/1) on the instrument panel.

Task

The lower control panel control unit is connected to the upper control panel control unit over the instrument panel LIN (LIN-1). The requests issued by the driver are thus read in by the upper control panel control unit via the instrument panel LIN and placed on the interior CAN (CAN-B). The following functions are requested by actuating the switches located on the lower control panel control unit:

• Downhill Speed Regulation with speed setting adjustable to between v = 4 and 18 km/h by actuating the Downhill Speed Regulation switch
• Change from on-road ratio (high) to off-road ratio (low) by actuating the Low Range switch
• Raise vehicle level by actuation of level control HIGH switch (on model 164.1)
• Lower vehicle level by actuation of level control LOW switch (on model 164.1)
• Raise and lower vehicle level by actuation of level control selector wheel (on model 164.8)
• Automatic locking of transfer case differential (interaxle differential lock) and of rear axle differential (interwheel differential lock) by rotating differential lock selector wheel to the "AUTO" (A) position
• Manual 100% locking of transfer case differential (interaxle differential lock) and automatic locking of rear axle differential (interwheel differential lock) by rotating differential lock selector wheel to position (B)
• Manual 100% locking of transfer case differential (interaxle differential lock) and of rear axle differential (interwheel differential lock) by rotating differential lock selector wheel to position (C)

Wiring diagram for upper control panel and lower control panel control unit

N72/1, N72

PE54.21-P-2118-97MAA
