Fuse and relay box, as-built configuration - GF54.15-P-0800GZ
MODEL 164 up to Model Year 08

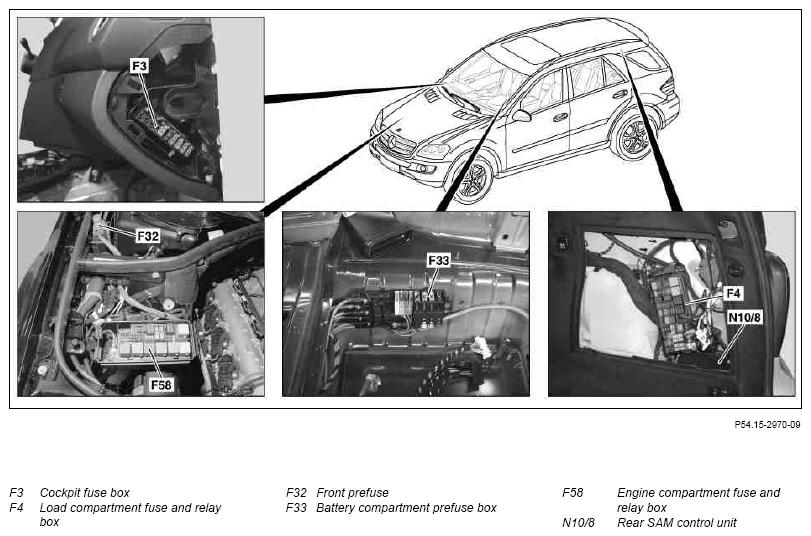

Shown on model 164.1 before production period 31.05.2006

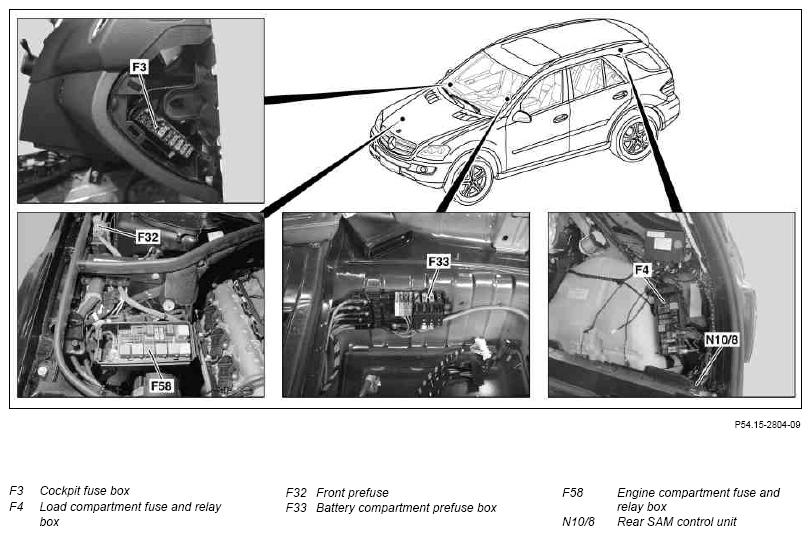

Shown on model designation 164.1 as of production period 01.06.2006
| Fuse assignment of fuse and relay box in right engine compartment | GF54.15-P-1256-02GZ | ||
| Fuse assignment of front prefuse box | GF54.15-P-1256-07GZ | ||
| Fuse assignment of load compartment fuse and relay box | GF54.15-P-1256-14GZ | ||
| Fuse assignment of battery compartment prefuse box | GF54.15-P-1256-15GZ | ||
| Fuse assignment of fuse box in cockpit | GF54.15-P-1256-16GZ | ||
| Relay assignment of fuse and relay box in right engine compartment | GF54.15-P-1257-02GZ | ||
| Relay assignment of the load compartment fuse and relay box | GF54.15-P-1257-08GZ |
