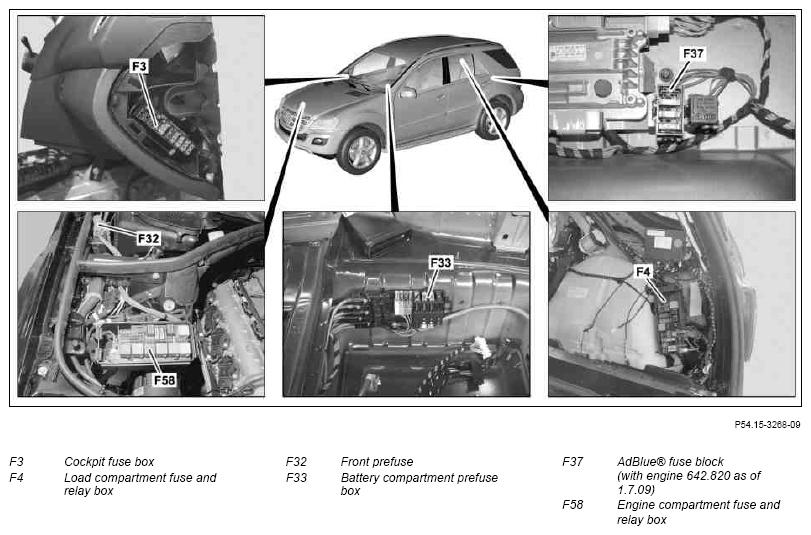

Fuse and relay box, as-built configuration - GF54.15-P-0800GM
MODEL 164.1 as of model year 2009/Modification Year 08 model refinement package
MODEL 164.8 as of model year 2009/CY 08
Shown on model 164.1
The DC/DC converter fuse (F41) (on model 164.195) is fitted in the line from the front prefuse box to the DC/DC converter (N83/1) control unit.
Notes/assignment:
- Circuit: 30
- Line identification: 35, 0 RD
- Fused function: DC/DC converter control unit
- Fuse protection in amp(s): 300 A
| Fuse assignment of fuse box in cockpit | GF54.15-P-1256-16GM | ||
| Fuse assignment of load compartment fuse and relay box | GF54.15-P-1256-14GM | ||
| Relay assignment of the load compartment fuse and relay box | GF54.15-P-1257-08GM | ||
| Fuse assignment of front prefuse box | GF54.15-P-1256-07GM | ||
| Fuse assignment of battery compartment prefuse box | GF54.15-P-1256-15GM | ||
| Fuse assignment of fuse box in luggage compartment | With engine 642.820 as of 1.7.09 | GF54.15-P-1256-05GM | |
| Fuse assignment of fuse and relay box in right engine compartment | GF54.15-P-1256-02GM | ||
| Relay assignment of fuse and relay box in right engine compartment | GF54.15-P-1257-02GM |
