Remove/install front door speakers in mirror triangle - AR82.62-P-7850GZ

MODEL 164

Illustrated on model 164.1

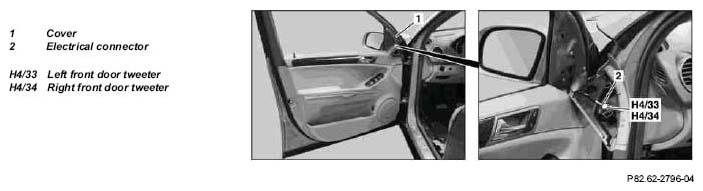

Fig 1: Identifying Front Door Tweeter, Electrical Connector And Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Unclip cover (1)	Unclip cover (1) at top first.
		Mounting wedge	Figure
2	Disconnect electrical connector (2)
3	Unclip left front door tweeter (H4/33) or right front door tweeter (H4/34) from cover (1)	Installation:  The catch lug on the speaker determines the installation position.
4	Install in the reverse order
5	Perform a function test

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
