Parktronic system (PTS), location of components - GF54.65-P-0001-02GZ

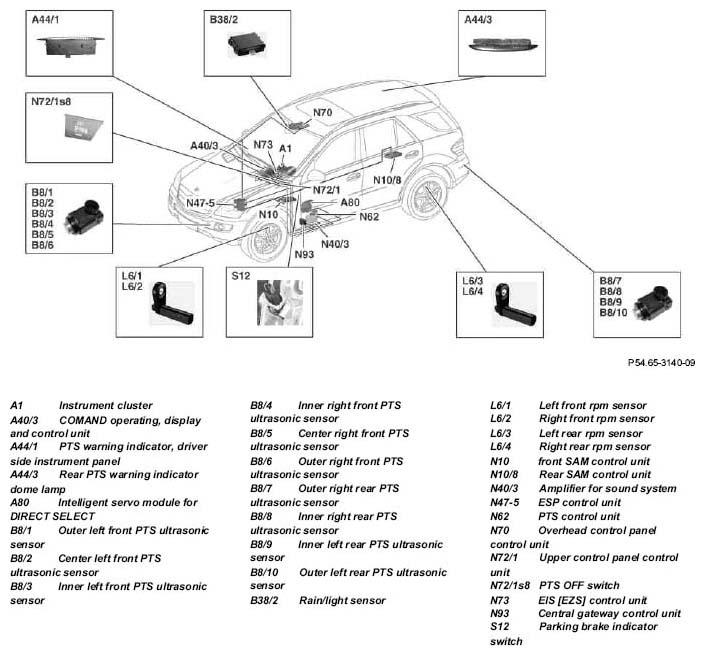

Fig 1: Parktronic System (PTS) Components Location - Shown On Model Designation 164.1
G05259045Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model designation 164.1
