Backup camera (RFK), block diagram - GF54.65-P-0005-02GZ
Backup camera (RFK), block diagram - GF54.65-P-0005-02GZ

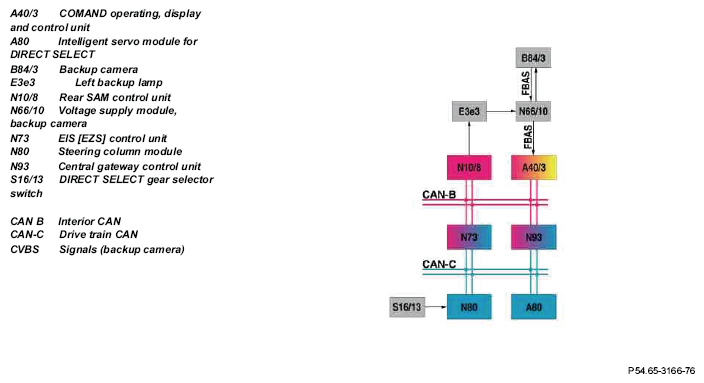

Fig 1: Backup Camera (RFK) Block Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
