"CHECK ENGINE" MIL - Description of components - GF54.30-P-5011BK
MODEL 219 with ENGINE 113.967 with CODE (494) USA version
MODEL 164.1 with ENGINE 113.964 with CODE (494) USA version
MODEL 251 with ENGINE 113.971 with CODE (494) USA version

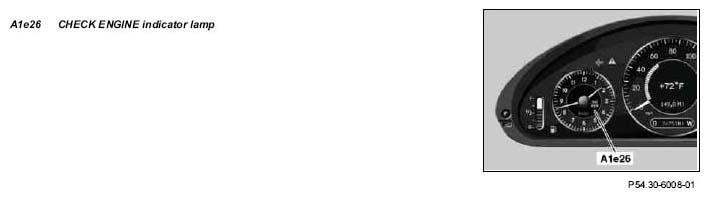

Shows model 219
Location
The "CHECK ENGINE" MIL is located in the instrument cluster.
Task
The "CHECK ENGINE" MIL alerts the driver to emissions-relevant malfunctions.
Function
The indicator lamp is actuated by the instrument cluster via a CAN message from the engine control unit. As a check of the function it lights up when the ignition is ON and for approx. 1 second as of an engine speed of approx. 500 rpm. The indicator lamp goes out if there is no fault present.
