Install Celette straightening tools and MZ elements - AR60.10-P-1060-02GZ

Setup for straightening tool MZ elements (front)

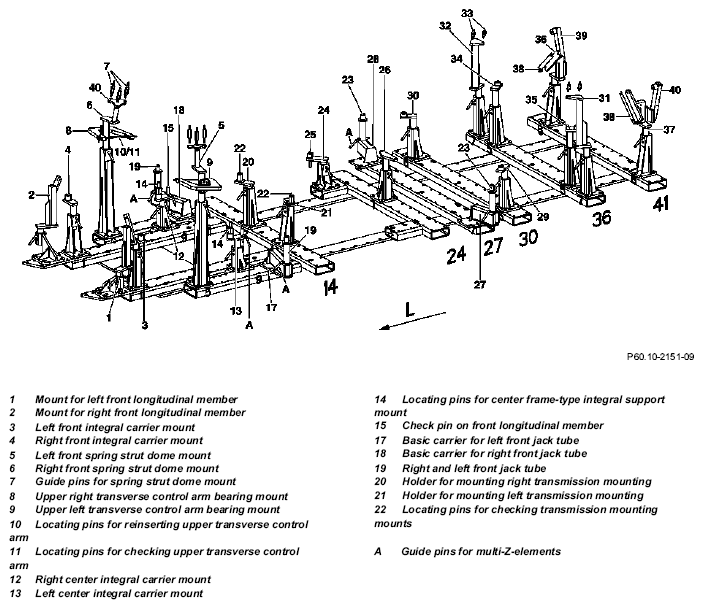

Fig 1: Identifying Setup For Straightening Tool MZ Elements

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Setup for straightening tool MZ elements (rear)

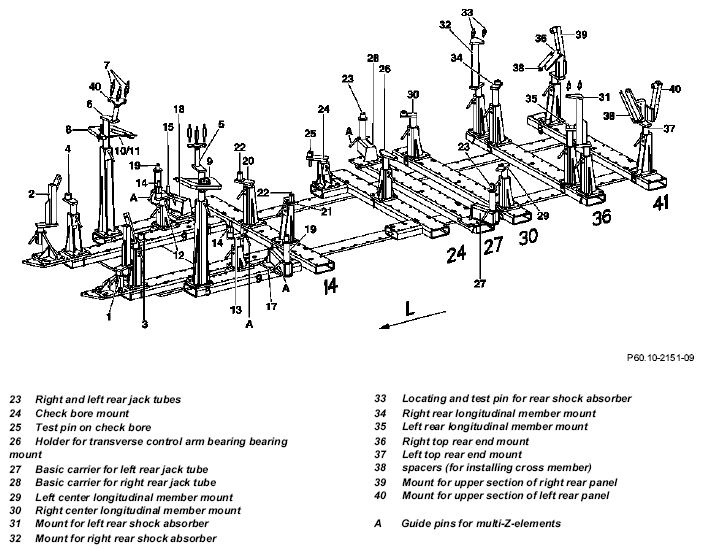

Fig 2: Identifying Setup For Straightening Tool MZ Elements (Rear)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The figures show the setup of the Celette straightening bench for body work. If straightening and welding operations are to be performed on A, B, C or D-pillars, additional modules must be installed on the Celette straightening bench. Refer to the Celette setup plans and separate work instructions.

1. Install MZ elements and straightening bracket set.

   Position and exact setup of the MZ elements and of the straightening tools are given in the relevant Celette setup plan.

MZ elements

• When installing the MZ elements on the straightening bench, the direction of the arrow on the MZ elements must be observed
• The part numbers for the MZ elements are cast onto the side

Straightening tool:

• Arrows for straightening tool always toward direction of travel
• In addition to the straightening tool number, the straightening tool for the left side have the letter "L" next to the arrow
• The position number in combination with the 8-digit reference number (e.g.: 7169.7001), is also the order number for replacement parts

Always setup the right side of the straightening bench analog to the left side.
