Remove/install rear-end door handle strip - AR72.20-P-3650GZ
MODEL 164

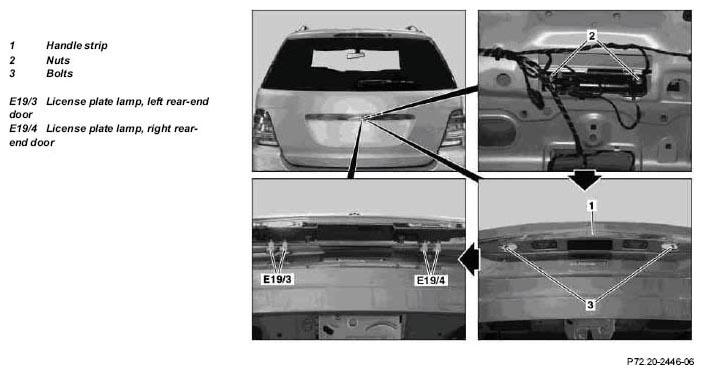

Outer rear-end door handle strip
Shown on model 164.1 with Keyless Go, code 889
| Remove/install | |||
|---|---|---|---|
| 1 | Remove door lining on rear-end door | AR72.20-P-3520GZ | |
| 2 | Unscrew nuts (2) from handle strip (1). | From inner side of rear-end door | |
| 3 | Unscrew bolts (3) from handle strip (1). | From outer side of rear-end door | |
| 4 | Disconnect electrical connector from left rear-end door license plate lamp (E19/3au) and right rear-end door license plate lamp (E19/4) | ||
| 5 | Remove handle strip (1) | Risk of breakage! Do not scratch paint. | |
| 6 | Install in the reverse order |
