Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210GZ

MODEL 164.1 /8

Shown on model 164.1

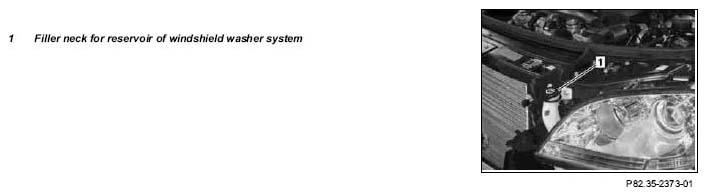

Fig 1: Identifying Filler Neck For Reservoir Of Windshield Washer System

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Fill
	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of childrens' reach only.	AS82.35-Z-0001-01A
1	Remove cap on filler neck (1) and fill reservoir of windshield washer system with windshield cleaning fluid	Observe mixing ratio as per the table on the packaging of the windshield washer fluid and antifreeze.
		Windshield washer fluid	*BF82.35-P-1001-01F
	Windshield washer fluid concentrate	Sheet 371.0	BB00.40-P-0371-00A
2	Seal filler neck (1) with cap

WINDSHIELD WASHER SYSTEM FILLING CAPACITY

Number	Designation			Model 164
BF82.35-P-1001-01F	Windshield washer fluid	Filling capacity	Liters	8.0
