Retrofit iPod interface - AZ82.60-P-0001-03GZ

Glue two of the Velcro strips included in the installation kit (see arrows) onto the iPod interface (3) as per the picture.
Affix the two other Velcro strips to the Velcro strips on the iPod interface (3).

Fig 1: Identifying Ipod Interface
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Contact coupling (5) from iPod wiring harness and coupling (7) from iPod interface wiring harness to iPod interface (3).
The connections are mechanically coded and are thus protected against mis-plugging.

Fig 2: Identifying Ipod Wiring Harness Coupling And Ipod Interface Wiring Harness Coupling And Ipod Interface
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

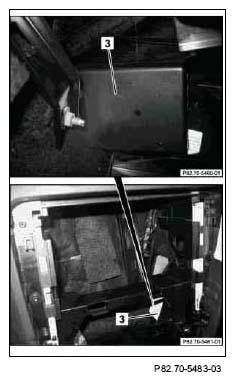

Mount iPod interface (3) in radio recess using the affixed Velcro strip as per the picture.

Fig 3: Identifying Ipod Interface
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
