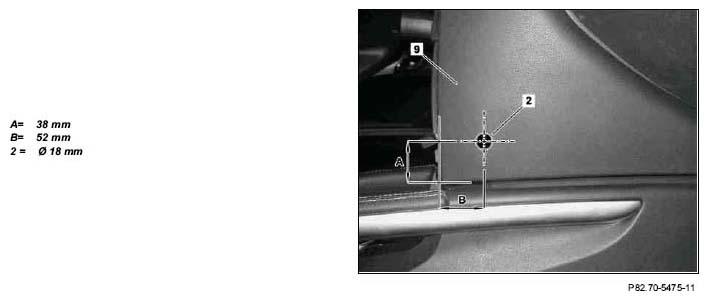

- Drill hole (2) as per dimensions on the right of the center console (9).
It must be drilled at an angle of approx. 30° sloping to the rear, in the direction of the radio recess. Ensure that no wiring harness in the radio recess nor the radio recess itself are damaged.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
- Stick a piece of Velcro strip (4) as shown in the figure onto the interface of the handsfree system (3).
- Wrap felt tape around the rest of the housing of the hands-free system interface (3), except the connectors.
Bonded surfaces must be pre-treated in accordance with adhesive tape manufacturer's instructions.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

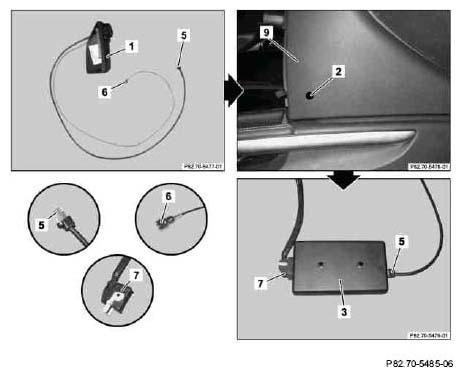

- Route telephone console connector (5) and antenna line connector (6) for the telephone console (1) through the drilled hole (2) in the center console (9) into the radio recess.
The telephone console (1) will be attached later to the center console (9).
- Connect telephone console connector (5) of telephone console (1) and interface connector (7) from the handsfree system wiring harness (8) to the hands-free system interface (3).
The connectors are mechanically coded to prevent incorrect connecting.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
- Attach hands-free system interface (3) in the radio recess as shown in the figure using Velcro strip.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
