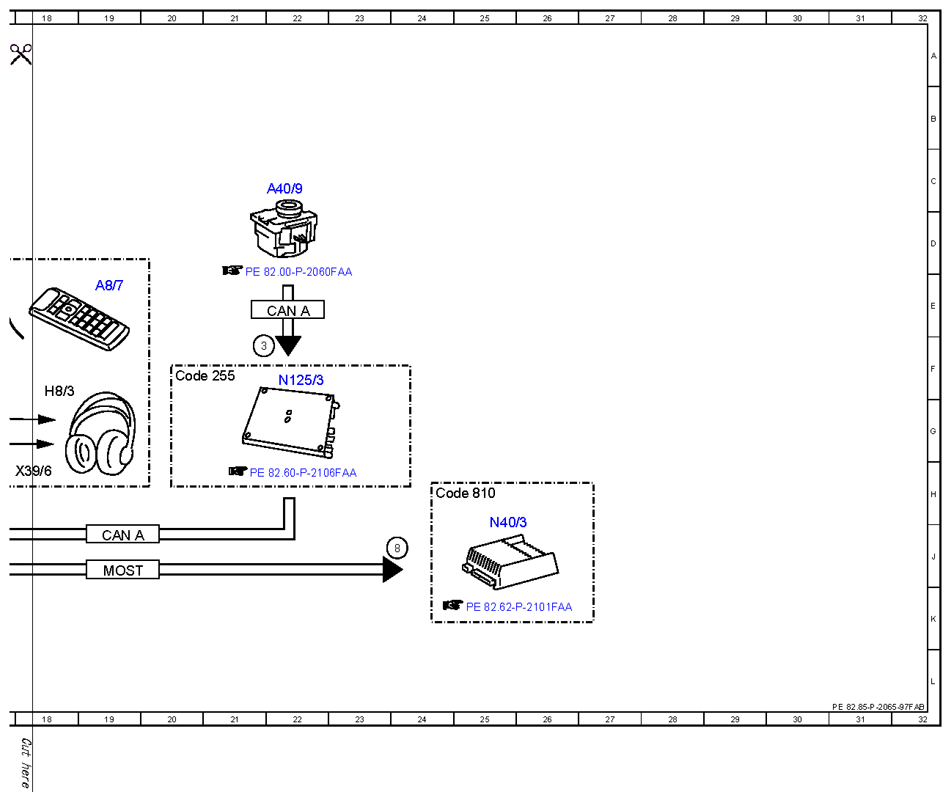

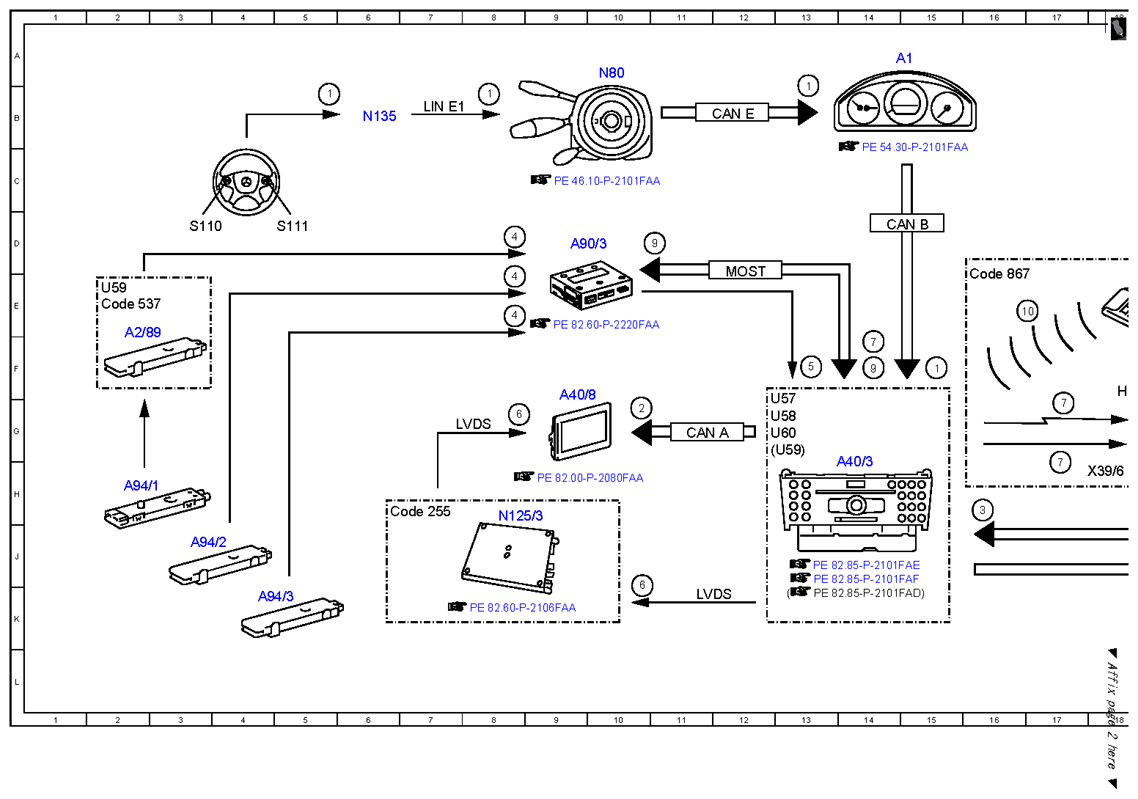

| 1 |
Multifunction steering wheel button group, signal |
5B |
| 1 |
Multifunction steering wheel button group, signal |
8B |
| 1 |
Multifunction steering wheel button group, signal |
15F |
| 1 |
Multifunction steering wheel button group, signal |
13B |
| 10 |
Infrared, signal |
16E |
| 2 |
Switch-on request, signal |
10G |
| 3 |
Audio/COMAND controller, request |
16H |
| 3 |
Audio/COMAND controller, request |
21F |
| 4 |
TV reception (digital) signal |
8E |
| 4 |
TV reception (digital) signal |
8E |
| 5 |
Transfer of video data (Y/C line) signal |
13F |
| 6 |
Transfer of video data (low voltage differential signaling line) signal |
10K |
| 6 |
Transfer of video data (low voltage differential signaling line) signal |
8G |
| 7 |
Audio, signal |
14F |
| 7 |
Audio, signal |
17H |
| 7 |
Audio, signal |
17G |
| 8 |
Speaker, actuation |
24J |
| 9 |
Control data communication |
11D |
| 9 |
Control data communication |
14F |
| A1 |
Instrument cluster |
14A |
| A2/89 |
TV antenna splitter |
2F |
| A40/3 |
COMAND control unit |
13H |
| A40/8 |
Audio/COMAND display |
9G |
| A40/9 |
Audio/COMAND control panel |
22C |
| A8/7 |
Remote control |
19E |
| A90/3 |
TV digital tuner |
9D |
| A94/1 |
TV 1 antenna amplifier |
2H |
| A94/2 |
TV 2 antenna amplifier |
3J |
| A94/3 |
TV 3 antenna amplifier |
4K |
| CAN A |
Telematics CAN |
11G |
| CAN A |
Telematics CAN |
19J |
| CAN A |
Telematics CAN |
22E |
| CAN B |
Interior CAN |
14D |
| CAN E |
Chassis CAN |
12B |
| Code 255 |
AMG Performance Media |
20F |
| Code 255 |
AMG Performance Media |
6H |
| Code 537 |
Digital radio |
2E |
| Code 810 |
Sound system |
24H |
| Code 867 |
SPLITVIEW |
16E |
| H8/3 |
Radio frequency headphones |
18F |
| LIN E1 |
Steering LIN |
7B |
| LVDS |
Low voltage differential signal |
11K |
| LVDS |
Low voltage differential signal |
8G |
| MOST |
Media Oriented System Transport |
12E |
| MOST |
Media Oriented System Transport |
19J |
| N125/3 |
AMG Performance Media control unit |
22F |
| N125/3 |
AMG Performance Media control unit |
8H |
| N135 |
Steering wheel electronics |
6B |
| N40/3 |
Sound system amplifier control unit |
25J |
| N80 |
Steering column module control unit |
10A |
| S110 |
Left multifunction steering wheel button group |
3D |
| S111 |
Right multifunction steering wheel button group |
5D |
| U57 |
Valid for model 204.2 |
12G |
| U58 |
Valid for model 204.0 |
12G |
| U59 |
Valid for model 204.9 |
2E |
| U59 |
Valid for model 204.9 |
12G |
| U60 |
Valid for model 204.3 |
12G |
| X39/6 |
Headphones electrical connector (cabled) |
18H |
