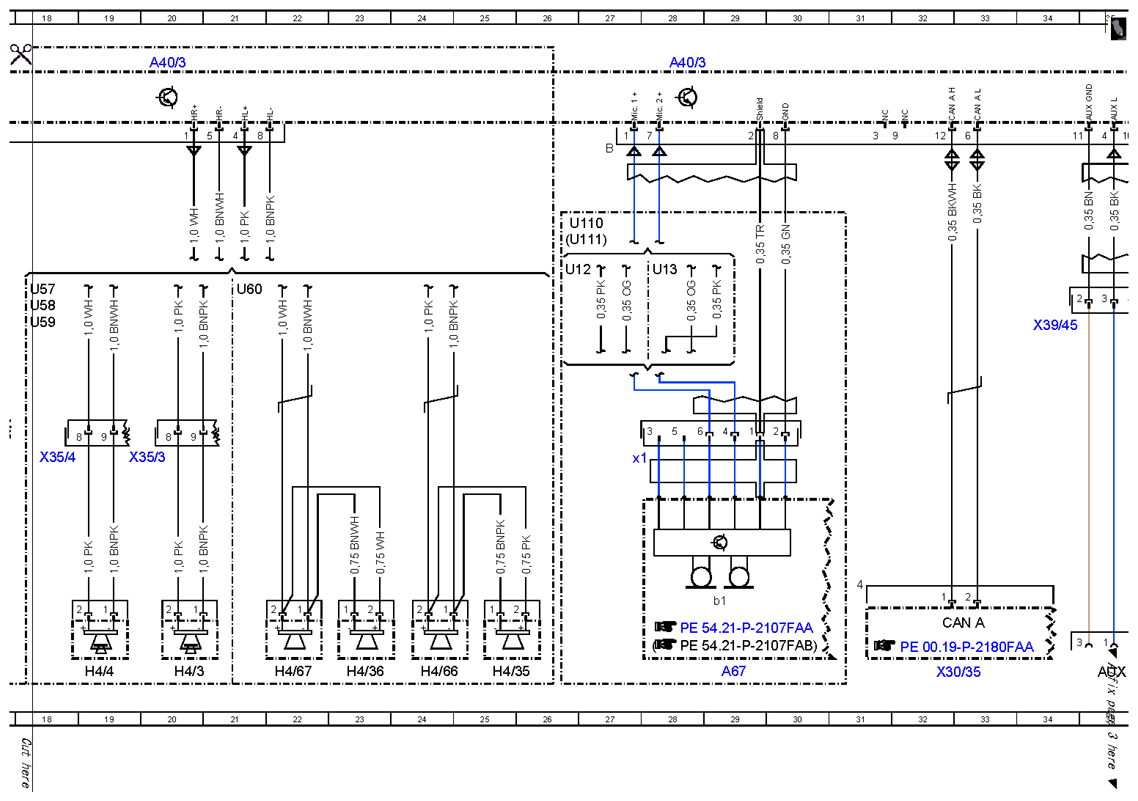

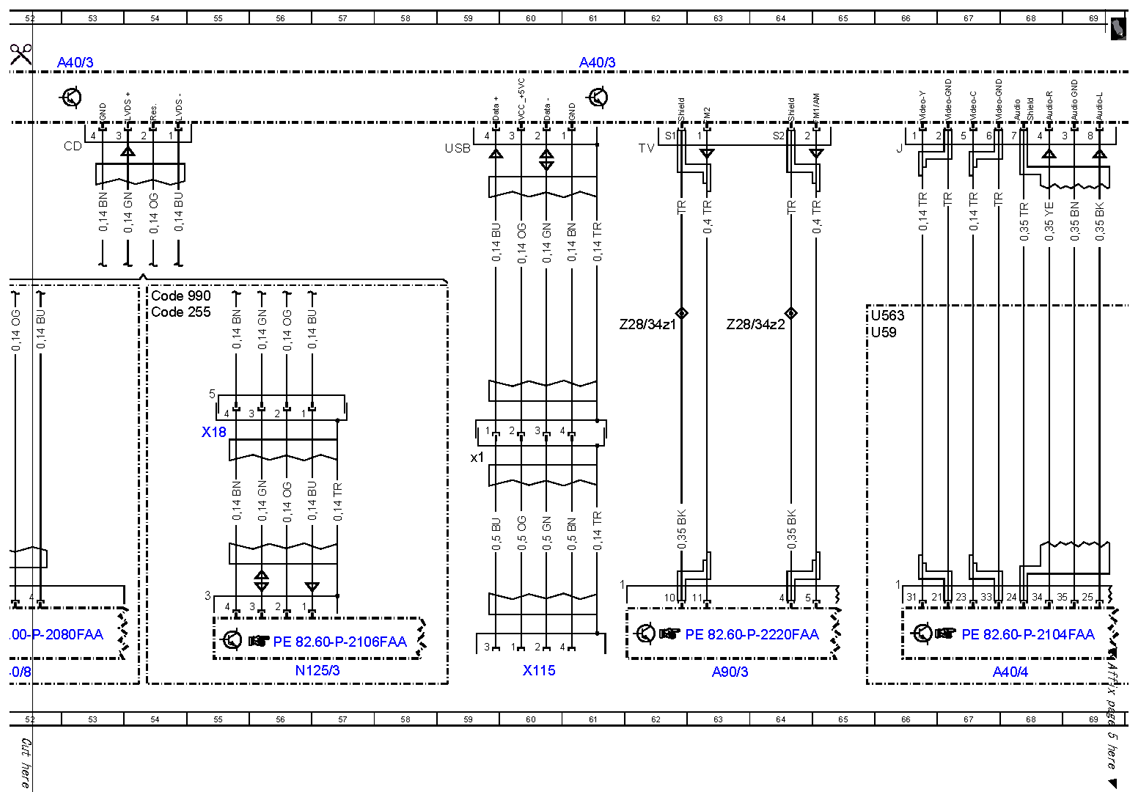

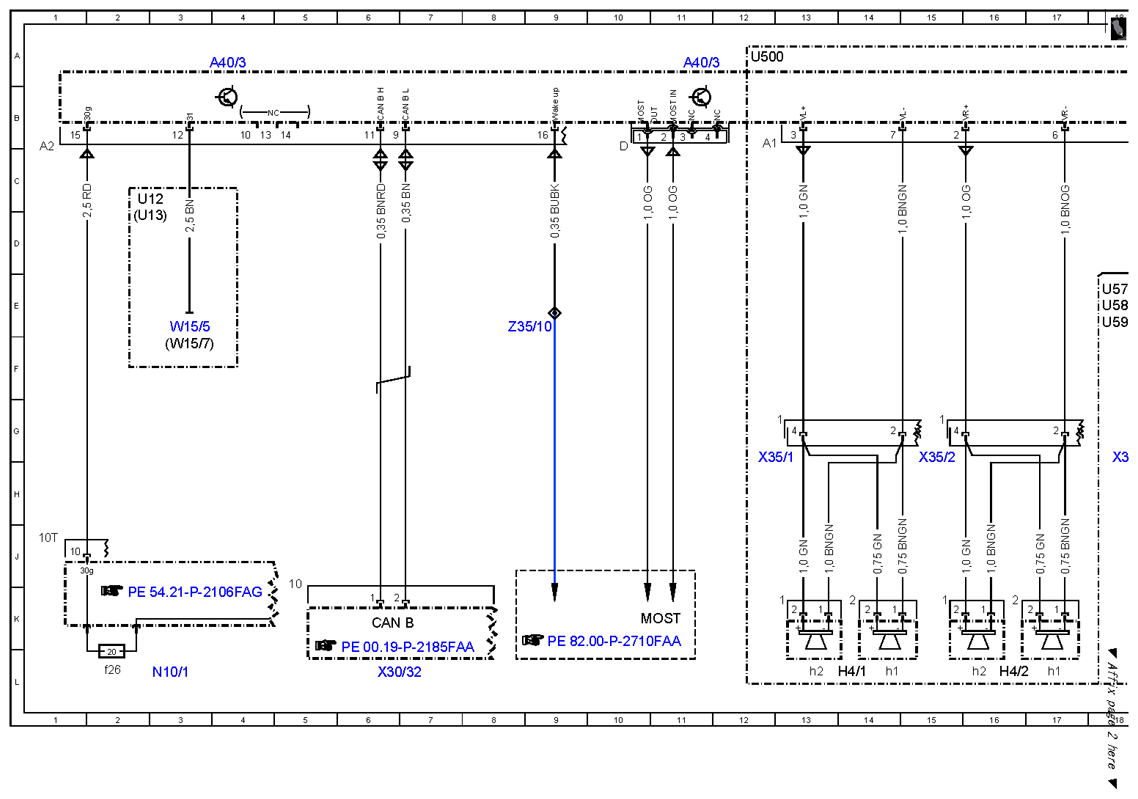

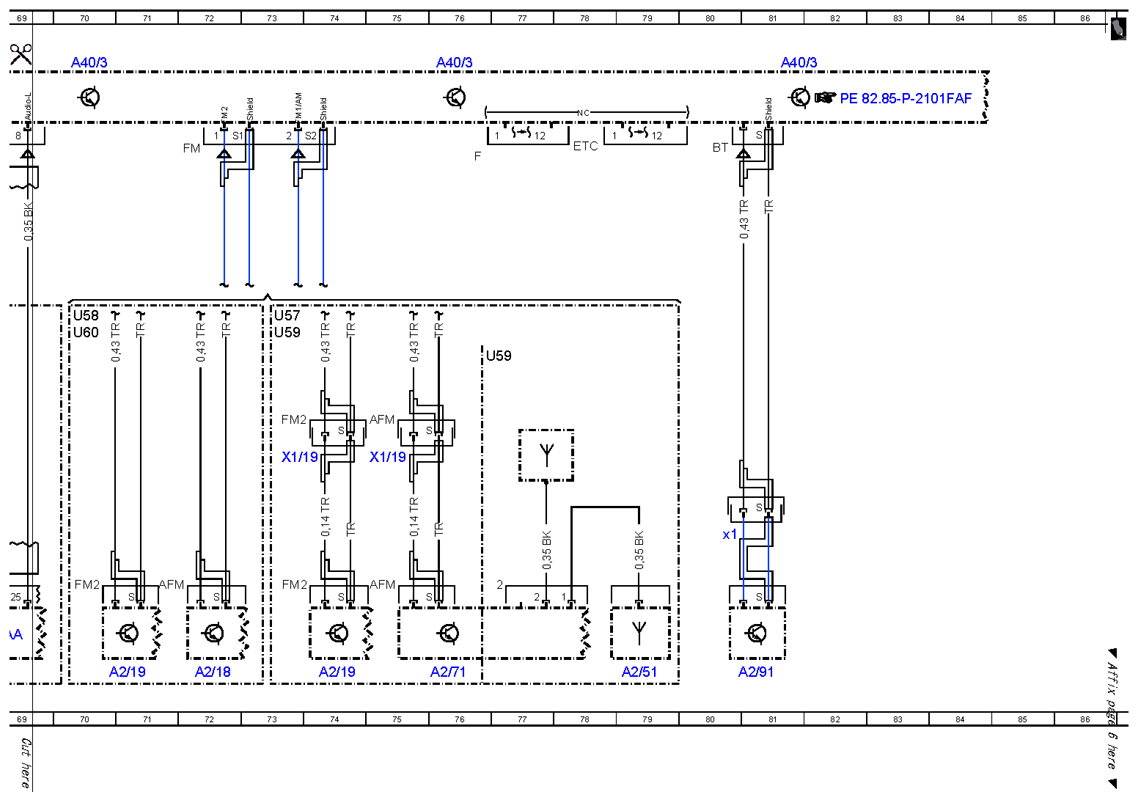

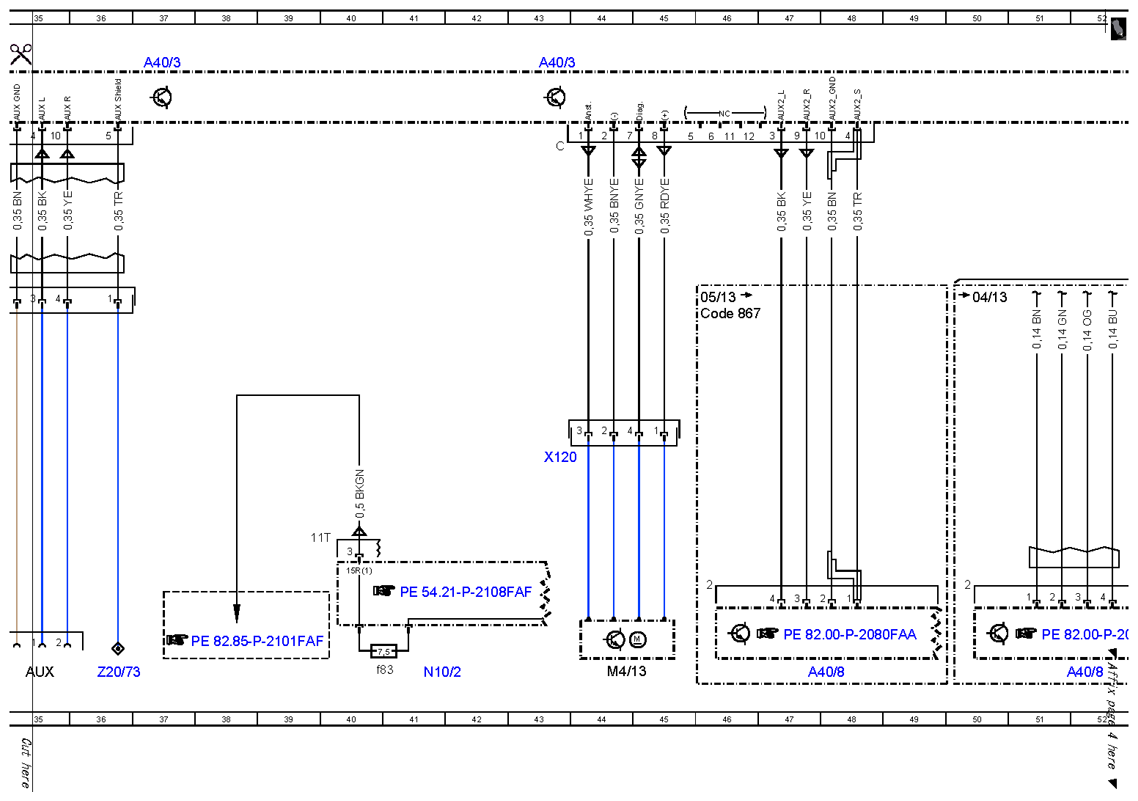

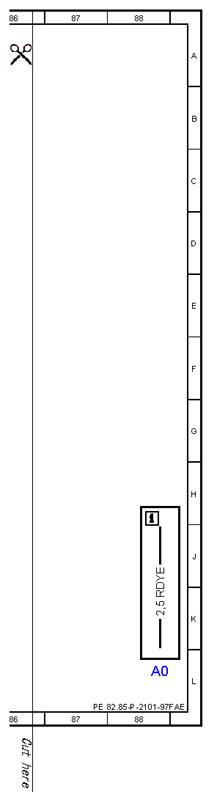

| A0 |
Color code key |
88L |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
72L |
| A2/19 |
Rear window antenna FM antenna amplifier |
74L |
| A2/19 |
Rear window antenna FM antenna amplifier |
71L |
| A2/51 |
Rear spoiler antenna |
79L |
| A2/71 |
Rear window antenna amplifier 1 |
76L |
| A2/91 |
Bluetooth antenna |
81L |
| A2/91x1 |
Bluetooth antenna electrical connector |
80J |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
11A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
28A |
| A40/3 |
COMAND control unit |
37A |
| A40/3 |
COMAND control unit |
43A |
| A40/3 |
COMAND control unit |
53A |
| A40/3 |
COMAND control unit |
61A |
| A40/3 |
COMAND control unit |
70A |
| A40/3 |
COMAND control unit |
76A |
| A40/3 |
COMAND control unit |
81A |
| A40/4 |
DVD player |
68L |
| A40/8 |
Audio/COMAND display |
52L |
| A40/8 |
Audio/COMAND display |
47L |
| A67 |
Inside rearview mirror |
29L |
| A67b1 |
Hands-free system microphone |
29K |
| A67x1 |
Inside rearview mirror unit electrical connector |
27H |
| A90/3 |
TV digital tuner |
63L |
| CAN A |
Telematics CAN |
33K |
| CAN B |
Interior CAN |
6K |
| Code 255 |
AMG Performance Media |
54E |
| Code 867 |
SPLITVIEW |
46E |
| Code 990 |
Mercedes-Benz AMG vehicles |
54E |
| H4/1 |
Left front door speaker |
14L |
| H4/1h1 |
Left front door tweeter |
14L |
| H4/1h2 |
Left front door bass speaker |
13L |
| H4/2 |
Right front door speaker |
16L |
| H4/2h1 |
Right front door tweeter |
17L |
| H4/2h2 |
Right front door bass speaker |
16L |
| H4/3 |
Left rear door speaker |
20L |
| H4/35 |
Left rear tweeter |
25L |
| H4/36 |
Right rear tweeter |
23L |
| H4/4 |
Right rear door speaker |
19L |
| H4/66 |
Left rear bass speaker |
24L |
| H4/67 |
Right rear bass speaker |
22L |
| M4/13 |
COMAND fan motor |
44L |
| MOST |
Media Oriented System Transport |
11K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f26 |
Fuse 26 |
2L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
41L |
| N10/2f83 |
Fuse 83 |
41L |
| N125/3 |
AMG Performance Media control unit |
56L |
| U110 |
Valid for overhead control panel with CAN |
26D |
| U111 |
Valid for overhead control panel without CAN |
26D |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U12 |
Valid for left-hand drive vehicles |
26E |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U13 |
Valid for right-hand drive vehicles |
28E |
| U500 |
Not valid for sound system |
12A |
| U563 |
Valid for rear entertainment (DVD) |
65E |
| U57 |
Valid for model 204.2 |
18E |
| U57 |
Valid for model 204.2 |
73E |
| U58 |
Valid for model 204.0 |
18E |
| U58 |
Valid for model 204.0 |
70E |
| U59 |
Valid for model 204.9 |
18E |
| U59 |
Valid for model 204.9 |
73F |
| U59 |
Valid for model 204.9 |
76F |
| U59 |
Valid for model 204.9 |
65F |
| U60 |
Valid for model 204.3 |
21E |
| U60 |
Valid for model 204.3 |
70F |
| W15/5 |
Left front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
3F |
| X1/19 |
AM/FM antenna amplifier electrical connector |
75H |
| X1/19 |
AM/FM antenna amplifier electrical connector |
73H |
| X115 |
USB electrical connector |
60L |
| X115x1 |
USB electrical connector connecting point |
59H |
| X120 |
Radio fan electrical connector |
43H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
55G |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
6L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
32L |
| X35/1 |
Left front door electrical connector |
12H |
| X35/2 |
Right front door electrical connector |
15H |
| X35/3 |
Left rear door electrical connector |
20H |
| X35/4 |
Right rear door electrical connector |
18H |
| X39/45 |
AUX jack electrical connector |
34E |
| Z20/73 |
Tracer wire connector sleeve |
36L |
| Z28/34z1 |
TV tuner shielding connector sleeve |
62E |
| Z28/34z2 |
TV tuner shielding connector sleeve |
64E |
| Z35/10 |
MOST wake-up signal connector sleeve |
9E |
