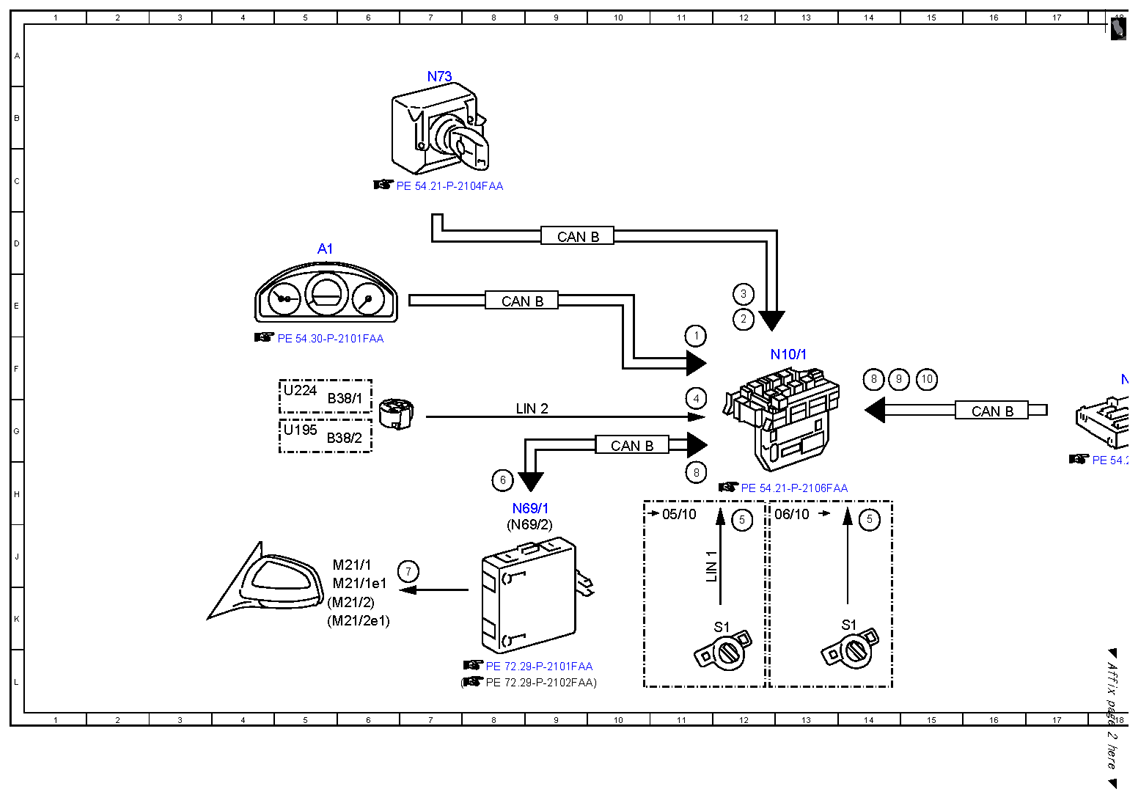

| 1 |
Headlamp switch-off delay, request |
11F |
| 10 |
Anti-theft alarm system, status |
15F |
| 2 |
Circuit 15, status |
12E |
| 3 |
Central locking (CL[ZV]), status |
12E |
| 4 |
Light sensor, status |
11G |
| 5 |
Exterior lights switch, status |
|
| 5 |
Exterior lights switch, status |
|
| 6 |
Ambient lamp, request |
8H |
| 7 |
Ambient lamp, actuation |
7J |
| 8 |
Door rotary tumbler switch, status |
11H |
| 8 |
Door rotary tumbler switch, status |
14F |
| 9 |
Tailgate rotary tumbler switch, status |
14F |
| A1 |
Instrument cluster |
5D |
| B38/1 |
Light sensor |
5G |
| B38/2 |
Rain/light sensor |
5G |
| CAN B |
Interior CAN |
8E |
| CAN B |
Interior CAN |
16G |
| CAN B |
Interior CAN |
9D |
| CAN B |
Interior CAN |
10G |
| LIN 1 |
Instrument panel LIN |
11J |
| LIN 2 |
Wiper/inside rearview mirror LIN |
8G |
| M21/1 |
Left outside mirror |
5J |
| M21/1e1 |
Left outside mirror ambient lamp |
5K |
| M21/2 |
Right outside mirror |
5K |
| M21/2e1 |
Right outside mirror ambient lamp |
5K |
| N10/1 |
Front SAM control unit with fuse and relay module |
13F |

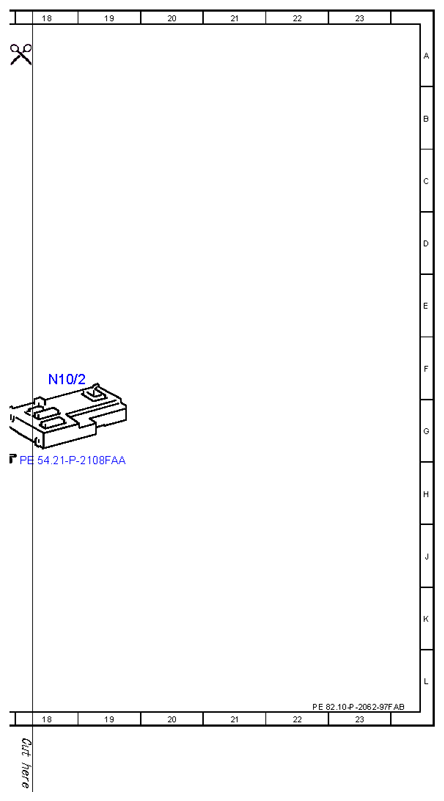

| N10/2 |
Rear SAM control unit with fuse and relay module |
18F |
| N69/1 |
Left front door control unit |
8H |
| N69/2 |
Right front door control unit |
8J |
| N73 |
Electronic ignition switch control unit |
7A |
| S1 |
Exterior lights switch |
12K |
| S1 |
Exterior lights switch |
14K |
| U195 |
Valid for rain/light sensor |
5G |
| U224 |
Valid without rain sensor |
5F |
