Removing and installing steering column adjustment switch - AR54.25-P-2804GZ
MODEL 164 with CODE (441) Electrically adjustable steering column

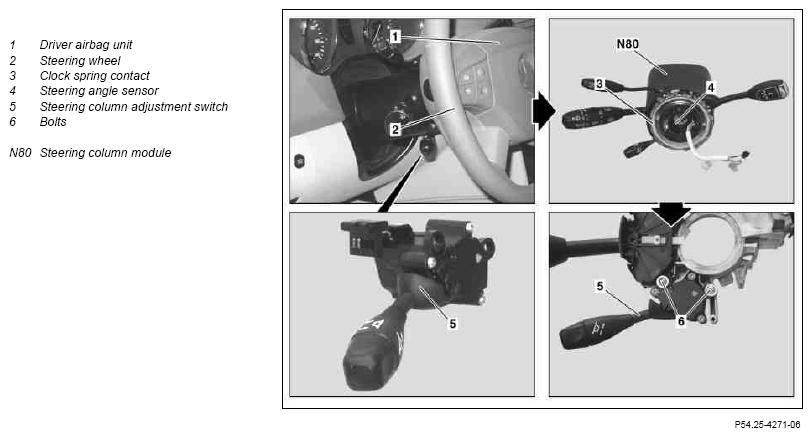

Illustrated on model 164.1
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground cable | AR54.10-P-0003GZ | |
| 2 | Remove driver airbag unit (1) | AR91.60-P-0660GZ | |
| 3 | Remove steering wheel (2) | AR46.10-P-0100GZ | |
| 4 | Removing jacket tube module (N80) | AR54.25-P-2802GZ | |
| 5 | Remove clock spring contact (3) | AR46.10-P-0200GZ | |
| 6 | Remove steering angle sensor (4) | AR46.10-P-0300GZ | |
| 7 | Remove bolts (6) and remove the steering column adjustment switch (5) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform basic programming | AR00.19-P-0200GZ |
