Remove/install passenger's side interior fuse box - AR54.15-P-1311GZ

MODEL 164

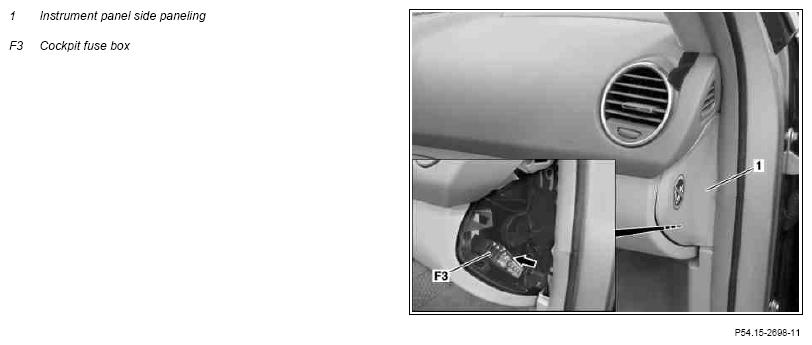

Fig 1: Identifying Passenger Side Interior Fuse Box Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices	No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground cable		AR54.10-P-0003GZ
	Notes on battery	All models	AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
2	Remove instrument panel side paneling (1)	Long wedge	Fig 2
3	Remove cockpit fuse box (F3)	Lever off cockpit fuse box (F3) using long wedge (arrow).
		Long wedge	Fig 2
4	Disconnect electrical lines from cockpit fuse box (F3)	Route electric cables without crossing over.
		Wiring harness repair kit	Fig 3
5	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
