Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006GZ

MODEL 164 with CODE (220) Parktronic system (PTS)

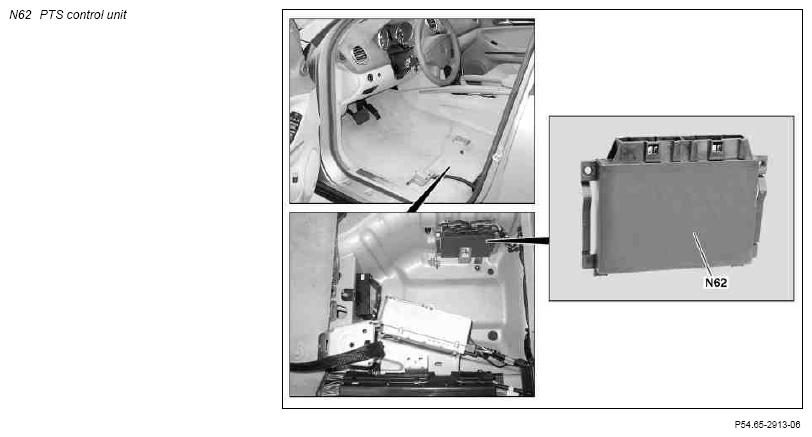

Fig 1: Identifying Parktronic System Control Unit Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

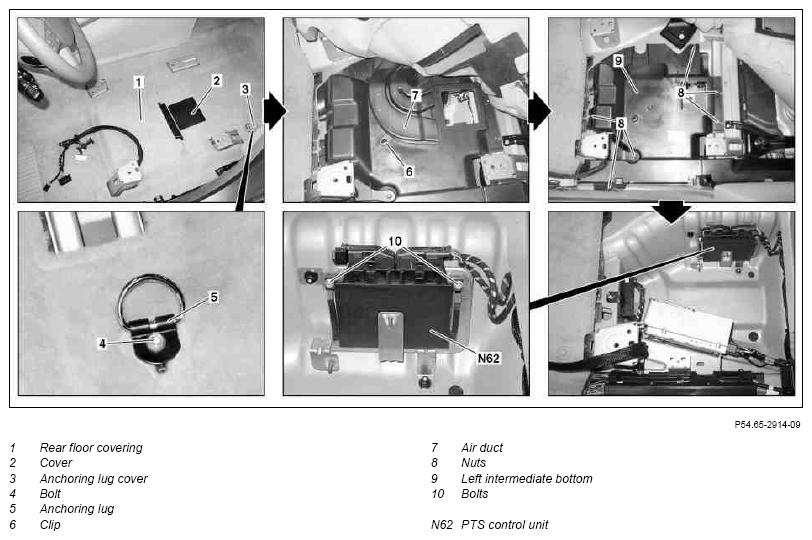

Fig 2: Identifying Parktronic System Control Unit Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

26.7.06

Disconnect/connect battery ground line and carry out basic programming removed

Steps 2 and 16

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Read out coding from PTS control unit (N62)	Only when replacing the PTS control unit (N62) and if it can still be read out using STAR DIAGNOSIS.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
2	Remove driver seat		AR91.10-P-1000GZ
3	Remove left door sill moldings	Front left and rear left.	AR68.30-P-4100GZ
4	Remove paneling on B-pillar	Bottom left.	AR68.30-P-4700GZ
5	Remove cover (2).
6	Remove anchoring lug cover (3)
7	Remove bolt (4) and remove anchoring lug (5)	Use anchoring lug (5) with its positioning lug properly.
			*BA68.50-P-1001-03F
8	Fold down rear floor covering	Left.
9	Remove clip (6) and remove air duct (7)
10	Unscrew nuts (8) and remove the left intermediate bottom (9)
11	Disconnect electrical connector from PTS control unit (N62)
12	Unscrew bolts (10) and remove PTS control unit (N62)
13	Install in the reverse order
14	Code PTS control unit (N62)	Only when installing a new PTS control unit (N62).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

CARGO RETAINERS

Number	Designation		Model 164.1/8
BA68.50-P-1001-03F	Bolt, cargo retainers to body	Nm	24

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
