Remove and install DC/AC converter control unit - AR54.21-P-1600GY
MODEL 164.8 with CODE U80 (115 V socket in load compartment)
MODIFICATION NOTES
| 16.4.13 | "Disconnect ground line of battery" included for first time | Operation step 1 |
| Risk of death from touching live components with AC voltages over 30 V | Do not touch live parts. Persons who have electronic implants (e.g. cardiac pacemakers) must not perform any work on components conducting AC voltage greater than 30 V. | AS54.00-Z-0001-05A | |
| Remove/install | |||

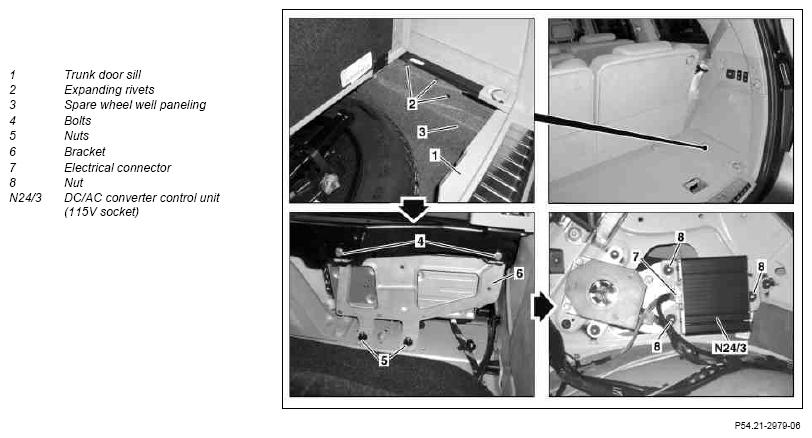

| 1 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 2 | Remove trunk door sill (1) | AR68.30-P-4100GZA | |
| 3 | Remove expansion rivets (2) | ||
| 4 | Fold trim of spare tire well (3) to one side | ||
| 5 | Unscrew bolts (4) and unscrew nuts (5) | ||
| 6 | Remove bracket (6) with DC/AC converter control unit (115 V power outlet) (N24/3) | ||
| 7 | Disconnect electrical connector (7) | ||
| 8 | Unscrew nut (8) and remove DC/AC converter control unit (N24/3) from bracket (6) | ||
| 9 | Install in the reverse order |
