Parktronic system (PTS), block diagram - GF54.65-P-0001-01GZ

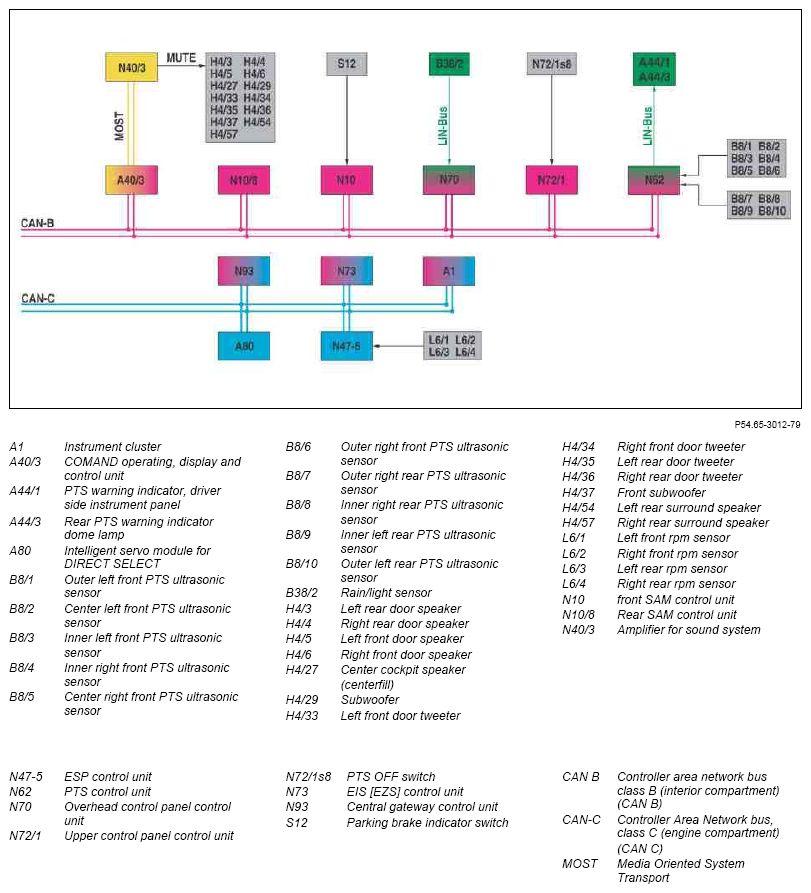

Fig 1: Parktronic System Block Diagram

G10117060

Courtesy of MERCEDES-BENZ USA
