PARKTRONIC location of components - GF54.65-P-0003-01GV

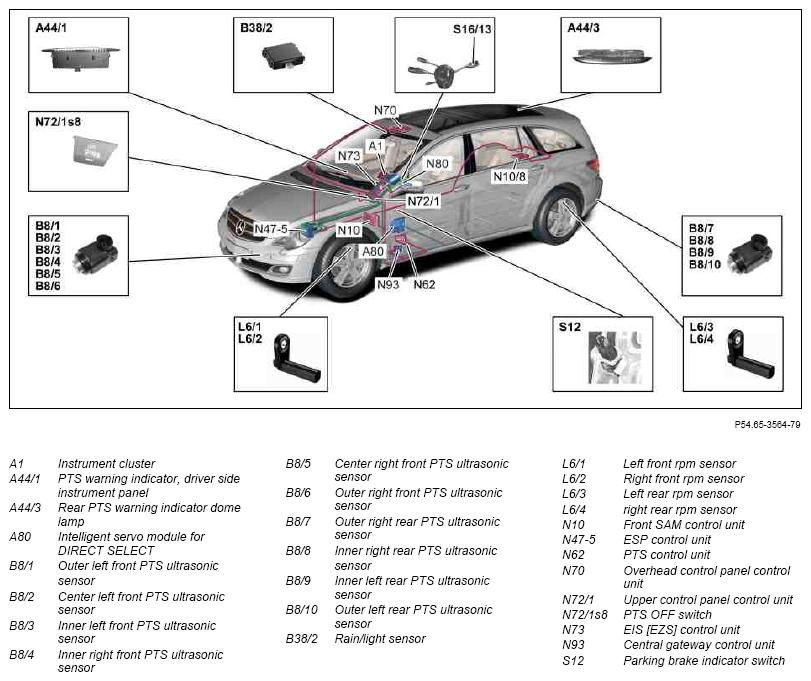

Fig 1: Parktronic Components Location - Shown On Model 251.1

G10117064

Courtesy of MERCEDES-BENZ USA

Shown on model 251.1
