Backup camera (RFK), block diagram - GF54.65-P-0005-02GM

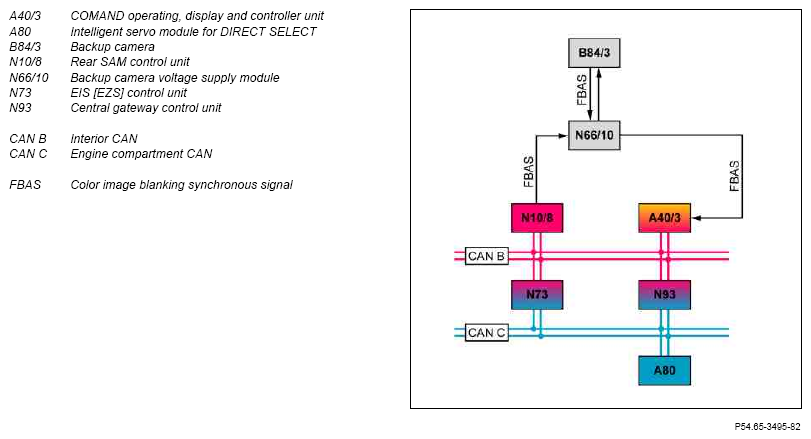

Fig 1: Backup Camera Block Diagram

G10117071

Courtesy of MERCEDES-BENZ USA
