Backup camera (RFK) location of components - GF54.65-P-0005-01GV

Shown on model 251.1

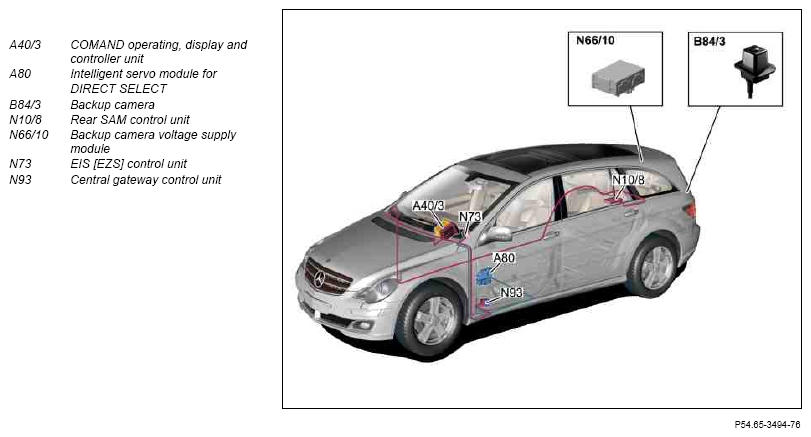

Fig 1: Backup Camera Components Location - Shown On Model 251.1

G10117069

Courtesy of MERCEDES-BENZ USA
