Electrical System, Equipment & Instructions - 164 Chassis - 1 Of 4
>>
Basic Knowledge
>>
On-board electrical system, location of components
>>
On-board electrical system, location of components - GF54.10-P-0004-01GV
On-board electrical system, location of components - GF54.10-P-0004-01GV
Illustrated on model 251.0

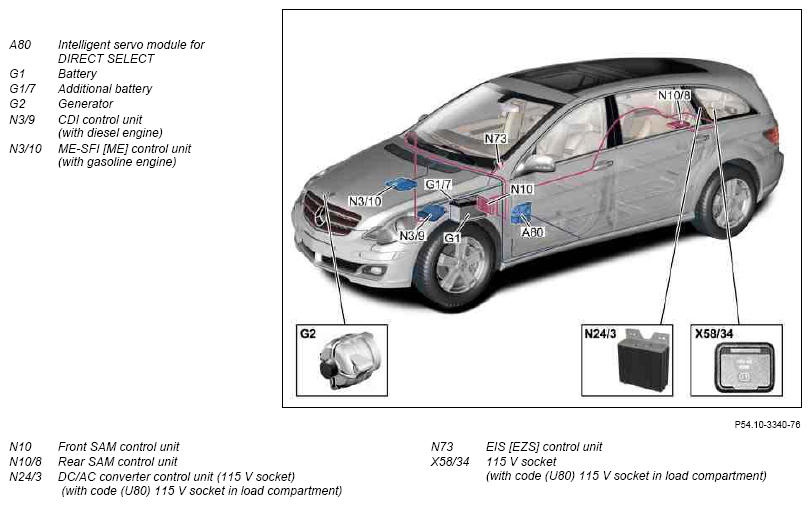

Fig 1: Electrical System Components And Battery Locations (Model 251)
