On-board electrical system block diagram - GF54.10-P-0004-02GM

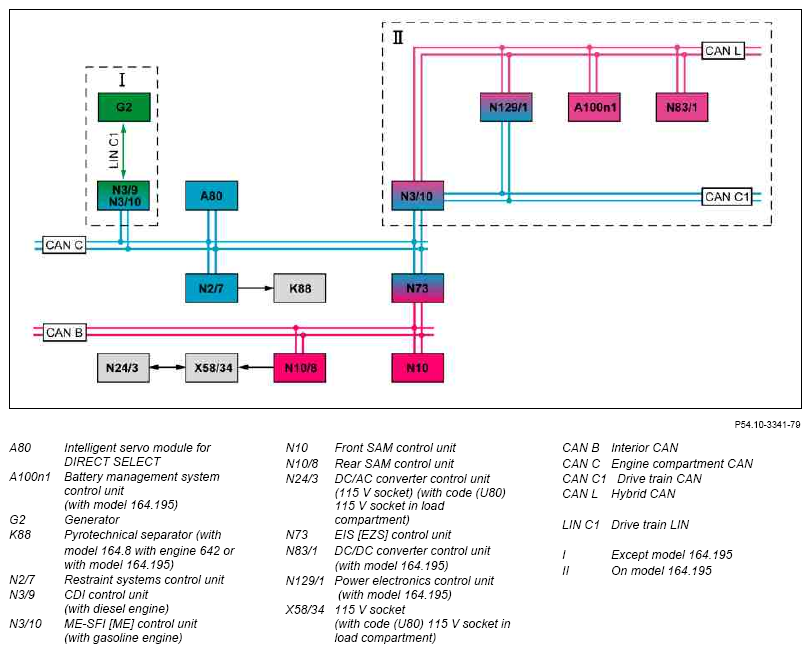

Fig 1: On-Board Electrical System Block Diagram

G10116933

Courtesy of MERCEDES-BENZ USA
