Instrument cluster (IC), location of components - GF54.30-P-0002-04GM

MODEL 164.1 as of model year 2009

MODEL 164.8, 251.0/1 as of model year 2009

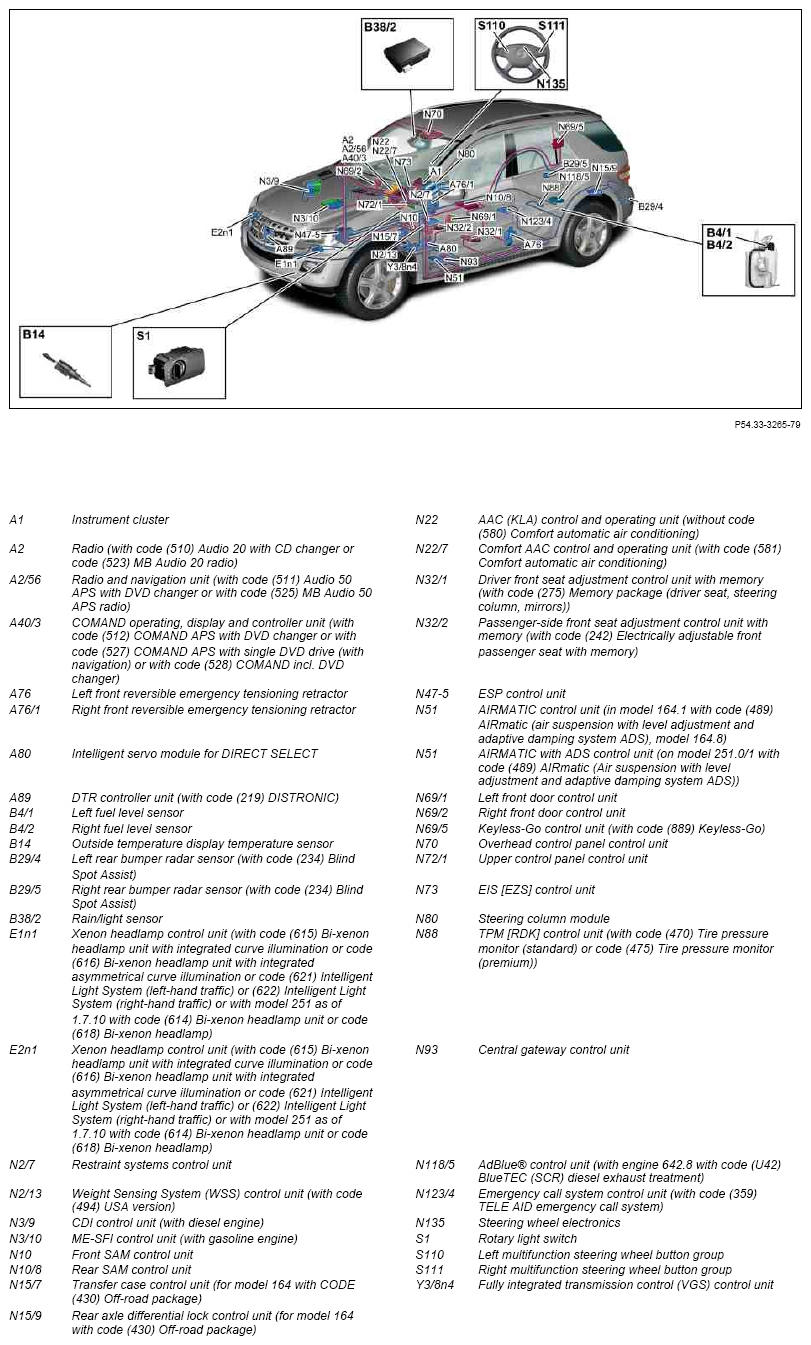

Fig 1: Instrument Cluster Components Location

Courtesy of MERCEDES-BENZ USA

Up to 30.6.09, shown on model 164.1

Fig 2: Instrument Cluster Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Model 164 (except 164.195) as of 1.7.09, shown on model 164.1

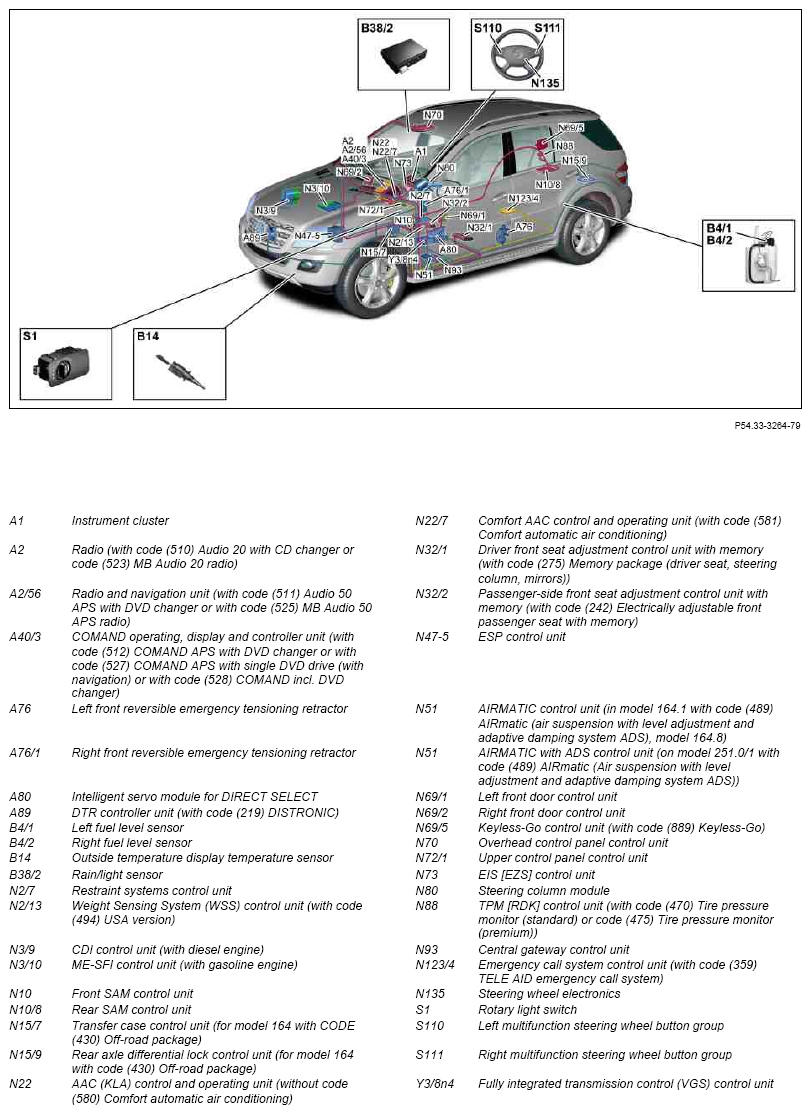

Fig 3: Instrument Cluster Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Model 164.195
