Engine diagnosis indicator lamp - Description of components - GF54.30-P-5010BK
MODEL 219 with ENGINE 113.967 except CODE (494) USA version
MODEL 164.1 with ENGINE 113.964 except CODE (494) USA version up to Model Year 8
MODEL 251 with ENGINE 113.971 except CODE (494) USA version up to Model Year 8
Shows model 219
Location

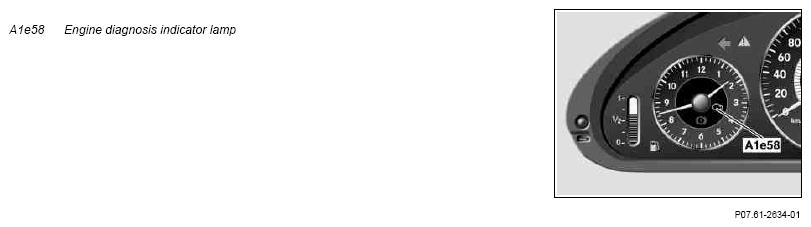

The engine diagnosis indicator lamp (engine symbol) is located in the instrument cluster.
Task
The engine diagnosis indicator lamp alerts the driver to emissions-relevant malfunctions.
Function
The indicator lamp is actuated by the instrument cluster via a CAN message from the engine control unit. As a check of the function it lights up when the ignition is ON and for approx. 1 second as of an engine speed of approx. 500 RPM. The indicator lamp goes out if there is no fault present.
