Remove/install head restraint on front seat - AR91.16-P-0040GZ

MODEL 164 Electrically adjustable head restraint

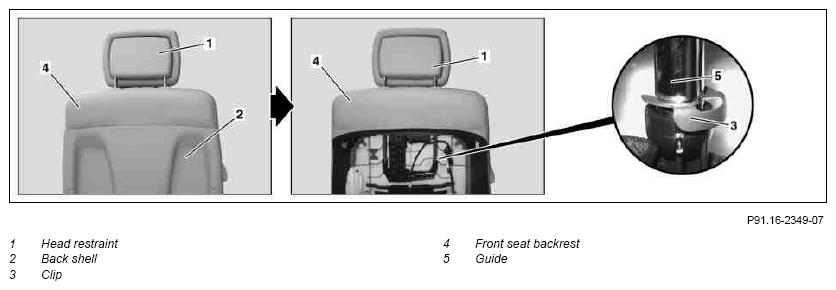

Fig 1: Identifying Head Restraint On Front Seat Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Head Restraint On Front Seat Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

26.7.06

"Disconnect/connect battery ground line" removed

Step 2

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove back shell (2) on front seat backrest (4)		AR91.10-P-1915GZ
2	Unclip clip (3) from guide (5)
3	Disconnect electrical connector	Vehicles with code 438 NECK-PRO.
4	Tilt front seat backrest to the rear (4)
5	Pull head restraint (1) out upward	Carefully remove head restraint (1) to avoid damaging the headliner.
6	Install in the reverse order
