Component description for front reversible emergency tensioning retractors - GF91.40-P-4020GM

MODEL 164.1 as of model year 2009/YoM 08 model refinement package

MODEL 164.8, 251.0/1 as of model year 2009/YoM 08

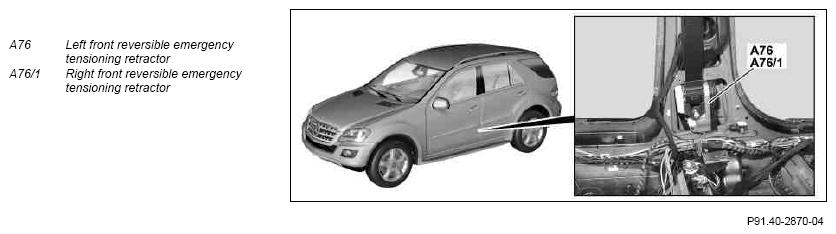

Shown on model 164.1

Location

The reversible emergency tensioning retractors are located in the respective B-pillar.

Task

The reversible emergency tensioning retractors perform the following tasks:

• Reading in of signals
• Evaluation of input factors
• Actuation of components

Reading in of signals

The input factors are read in via the following connections:

• Direct line
• Engine compartment CAN (CAN C)

Direct line

The following signals are read in via a direct line:

• Circuit 30
• Circuit 31

Engine compartment CAN

The following signals are read in over the engine compartment CAN:

• Information about the vehicle dynamics situation from the ESP control unit (N47-5) (except model 164.195) or the regenerative braking system control unit (N30/6) (with model 164.195)
• Steering angle from steering column tube module (N80)
• Status of front seat belt buckles from restraint systems control unit (N2/7)

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

Components are actuated via the following lines:

• Direct line
• Engine compartment CAN

Direct line

The internal actuators for seat belt tensioning are activated via a direct line.

Engine compartment CAN

The PRE-SAFE request is output to the central gateway control unit (N93) via the engine compartment CAN.

	Wiring diagram, reversible emergency tensioning retractor	Model 164	PE91.40-P-2200-97MAA
		Model 251	PE91.40-P-2200-97RAA
