Remove/install complete outside mirror - AR88.70-P-9000GZ
MODEL 166 without CODE Z04 (Light armoring) without CODE Z05(B5 armoring on special protection version)
MODEL 164

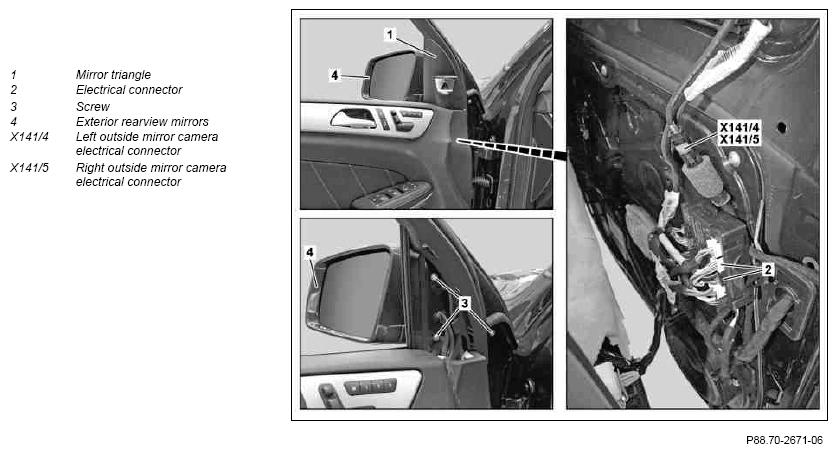

Shown on model 166.073
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Remove mirror triangle (1) | MODEL 166 without CODE 810 (Sound-system) without CODE 811 (Advanced sound system) without CODE Z04 (Light armoring) without CODE Z05(B5 armoring on special protection version) |
|
| 1.2 | Loosen mirror triangle (1) and lay down to side with feed line connected | MODEL 166 with CODE 810 (Sound-system) with CODE 811 (Advanced sound system) without CODE Z04 (Light armoring) without CODE Z05(B5 armoring on special protection version) |
|
| 2.1 | Remove door lining at front door | MODEL 164 | |
| AR72.10-P-1000GZ | |||
| 2.2 | Detach door lining from front door | MODEL 166 without CODE Z04 (Light armoring) without CODE Z05(B5 armoring on special protection version) |
|
| AR72.10-P-1000GQ | |||
| 3 | Release and disconnect electrical connectors (2) | ||
| 4 | Release left outside mirror camera electrical connector (X141/4) or right outside mirror camera electrical connector (X141/5) and disconnect | MODEL 166 with CODE 501(360 degree camera) without CODE Z04 (Light armoring) without CODE Z05(B5 armoring on special protection version) |
|
| 5 | Remove bolt (3) | ||
| 6 | Remove outside mirror (4) | ||
| 7 | Install in the reverse order | ||
| 8 | Calibrate camera 360° camera with STAR DIAGNOSIS | MODEL 166 with CODE 501(360 degree camera) without CODE Z04 (Light armoring) without CODE Z05(B5 armoring on special protection version) |
|
| AD00.00-P-2000-04A | |||
| 9 | Perform function test |
