Disassemble/assemble center console - AR68.20-P-2150GZ

MODEL 164

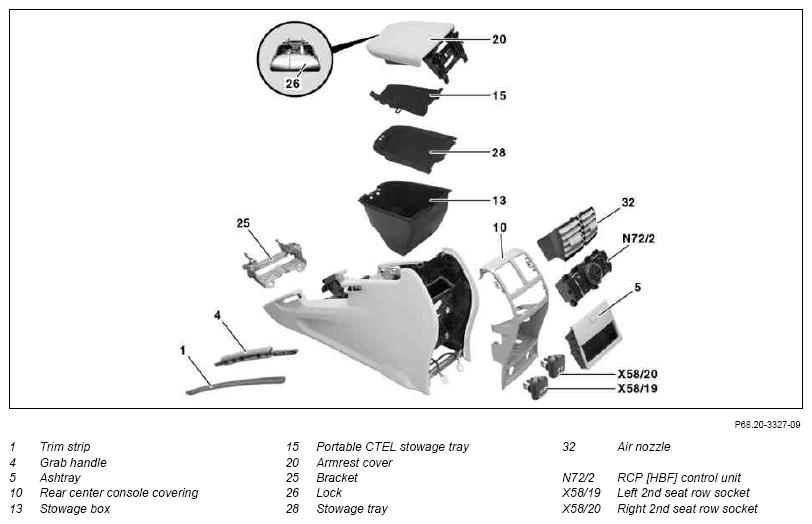

Fig 1: Identifying Center Console Remove/Install Components (1 Of 13)
G10117662Courtesy of MERCEDES-BENZ USA

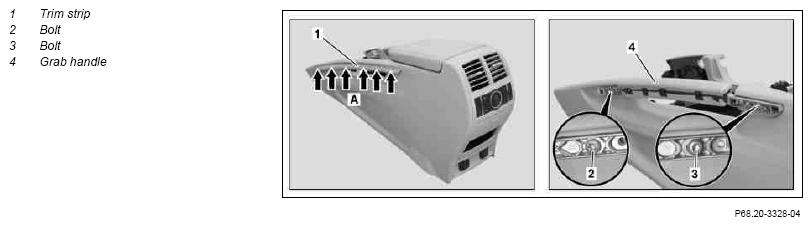

Fig 2: Identifying Center Console Remove/Install Components (2 Of 13)
G10117663Courtesy of MERCEDES-BENZ USA

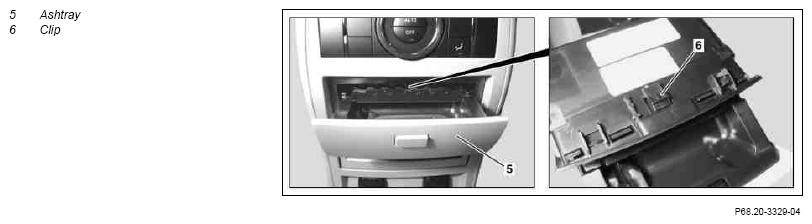

Fig 3: Identifying Center Console Remove/Install Components (3 Of 13)
G10117664Courtesy of MERCEDES-BENZ USA

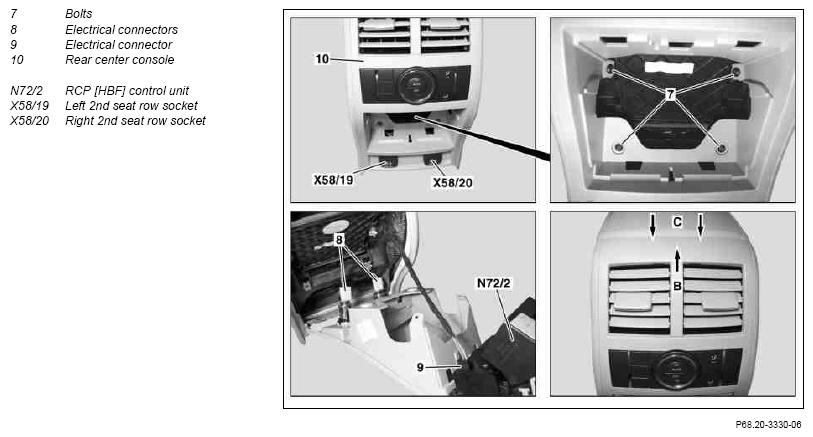

Fig 4: Identifying Center Console Remove/Install Components (4 Of 13)
G10117665Courtesy of MERCEDES-BENZ USA

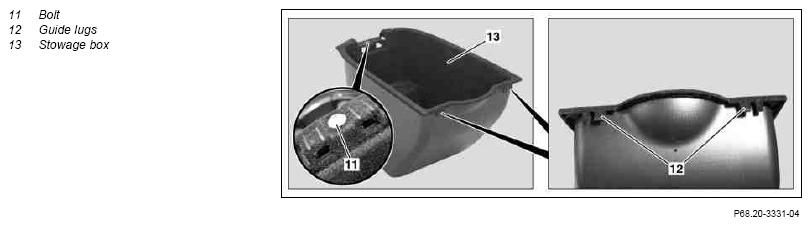

Fig 5: Identifying Center Console Remove/Install Components (5 Of 13)
G10117666Courtesy of MERCEDES-BENZ USA

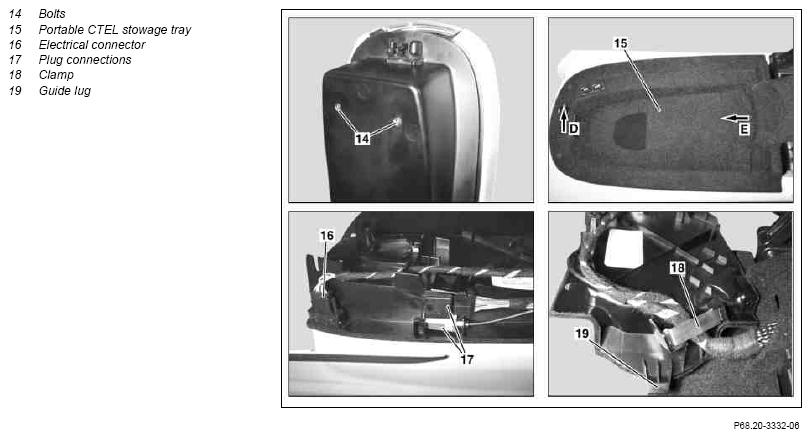

Fig 6: Identifying Center Console Remove/Install Components (6 Of 13)
G10117667Courtesy of MERCEDES-BENZ USA

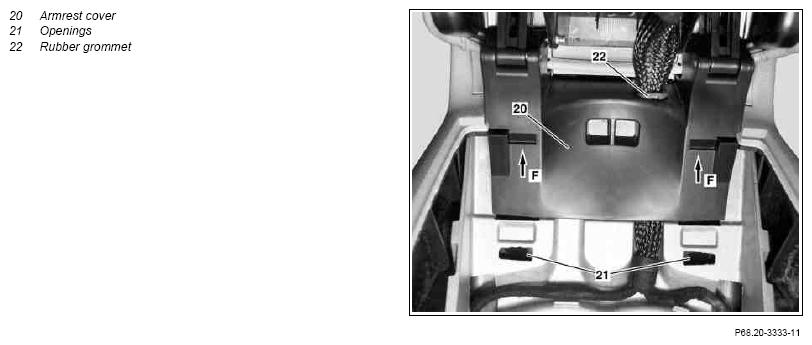

Fig 7: Identifying Center Console Remove/Install Components (7 Of 13)
G10117668Courtesy of MERCEDES-BENZ USA

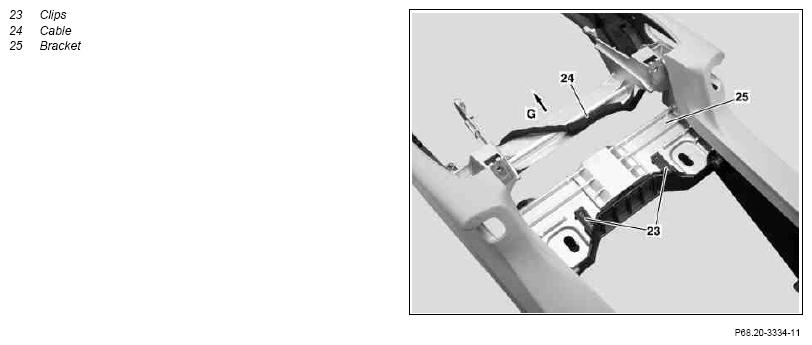

Fig 8: Identifying Center Console Remove/Install Components (8 Of 13)
G10117669Courtesy of MERCEDES-BENZ USA

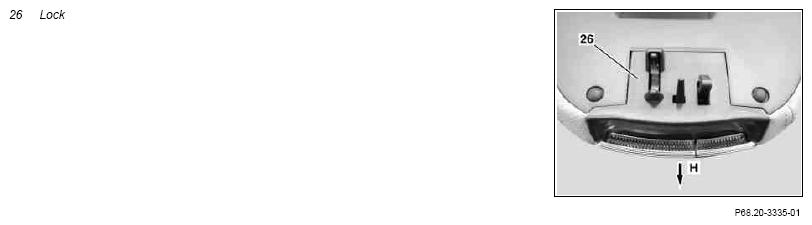

Fig 9: Identifying Center Console Remove/Install Components (9 Of 13)
G10117670Courtesy of MERCEDES-BENZ USA

Shown installed

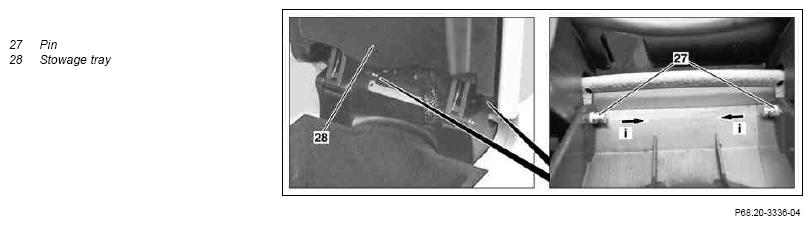

Fig 10: Identifying Center Console Remove/Install Components (10 Of 13)
G10117671Courtesy of MERCEDES-BENZ USA

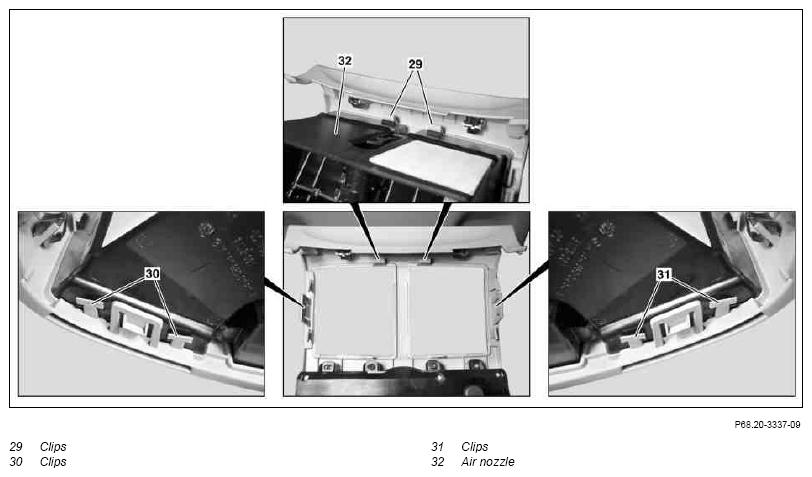

Fig 11: Identifying Center Console Remove/Install Components (11 Of 13)
G10117672Courtesy of MERCEDES-BENZ USA

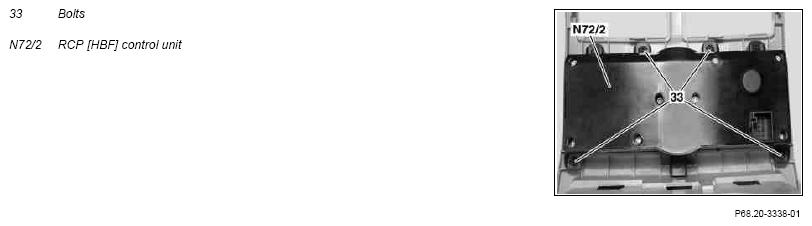

Fig 12: Identifying Center Console Remove/Install Components (12 Of 13)
G10117673Courtesy of MERCEDES-BENZ USA

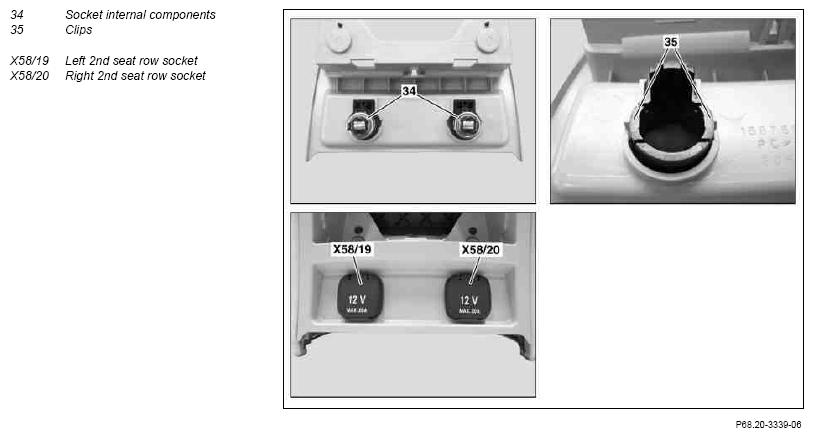

Fig 13: Identifying Center Console Remove/Install Components (13 Of 13)
G10117674Courtesy of MERCEDES-BENZ USA
DISASSEMBLINGASSEMBLING Disassemble/assemble
1 Remove center console   AR68.20-P-2000GZ
2 Unclip trim strip (1) NOTES Completely move long wedge to clips (arrows A) to prevent damaging trim strip.
INSTALLATION IMPORTANT Ensure that guide is seated correctly

SPECIAL TOOL Long wedge Figure
3 Remove bolts (2, 3) TORQUE SPECIFICATION *BA68.20-P-1001-01E
4 Remove grab handle (4)
5 Open ashtray (5)
6 Unclip clip (6) from ashtray (5). INSTALLATION IMPORTANT Ashtray should arrest audibly.
SPECIAL TOOL Long wedge Figure
7 Remove ashtray (5).
8 Remove bolts (7)
9 Unlock armrest cover (20) and position vertically
10 Unclip rear center console cover (10) upward (arrow B) INSTALLATION IMPORTANT Observe metal clips (arrows C)
IMPORTANT Pull lower area of rear center console cover up

SPECIAL TOOL Long wedge Figure
11 Disconnect electrical connectors (8) from socket for 2nd seat row, left (X58/19) and socket for 2nd seat row, right (X58/20)
12 Disconnect electrical connector (9) from RCP control module (N72/2)
13 Unscrew bolt (11)
14 Remove stowage box (13) upward INSTALLATION IMPORTANT Observe installation position of guide lugs (12)
15 Remove bolts (14)
16 Unlock stowage tray (28) and position vertically
17 Raise portable CTEL stowage tray (15) (arrow D)
18 Pull portable CTEL stowage tray (15) toward front (arrow E) INSTALLATION IMPORTANT Observe guide lug (19).
19 Turn portable CTEL stowage tray (15)
20 Separate electrical connector (16) IMPORTANT Only on vehicles with USA version, code 494.
21 Unclip connectors (17)
22 Remove clamp (18)
23 Unclip armrest cover (20) through openings (21) INSTALLATION IMPORTANT Armrest cover should arrest audibly.
SPECIAL TOOL Long wedge Figure
24 Pull armrest cover (20) upward (arrows F) IMPORTANT Unclip one side, pull upward and hold Unclip other side, pull upward Pull out armrest cover by pulling alternately upward (arrows F).
INSTALLATION IMPORTANT Ensure that rubber grommet (22) is seated correctly

25 Guide cable (24) through armrest cover (20).
26 Remove cable (24) from bracket (25). INSTALLATION IMPORTANT Observe correct installation position.
27 Unclip clips (23) from bracket (25) SPECIAL TOOL Long wedge Figure
28 Pull out bracket (25) toward front (arrow G)
29 Pull lock (26) out of armrest cover (20) (arrow H) IMPORTANT Lay armrest cover down on suitable subsurface.
30 Pull out bolts (27) toward rear (arrows I) INSTALLATION IMPORTANT Observe installation depth for bolts.
31 Remove stowage tray (28)
32 Unclip clips (29, 30, 31) SPECIAL TOOL Long wedge Figure
33 Remove air outlet (32) INSTALLATION IMPORTANT Observe installation position of air outlet.
34 Remove bolts (33)
35 Remove RCP control module (N72/2)
36 Remove socket internal components (34) from left 2nd seat row socket (X58/19) and right 2nd seat row socket (X58/20) SPECIAL TOOL Pliers Fig 15
37 Unclip socket for 2nd seat row, left (X58/19) and socket for 2nd seat row, right (X58/20) from clips (35). SPECIAL TOOL Long wedge Figure
38 Assemble in the reverse order
CENTER CONSOLE

Number Designation Model 164.1/8
BA68.20-P-1001-01E Bolt, grab handle to center console Nm 15
Fig 14: Identifying Long Wedge (115 589 03 59 00)
G07070400Courtesy of MERCEDES-BENZ USA
Fig 15: Identifying Pliers (169 589 00 37 00)
G07629289Courtesy of MERCEDES-BENZ USA
