Removing/Installing Rear-End Door Lining - AR72.20-P-3520GZ

MODEL 164

Fig 1: Identifying Rear-End Door Lining Removing/Installing Components - Shown On Model 164.1

Shown on model 164.1 3

Fig 2: Identifying Rear-End Door Lining Removing/Installing Components

	Remove/install
Removal	Danger of breakage or tearing off  plastic trim parts and associated mounting clips.

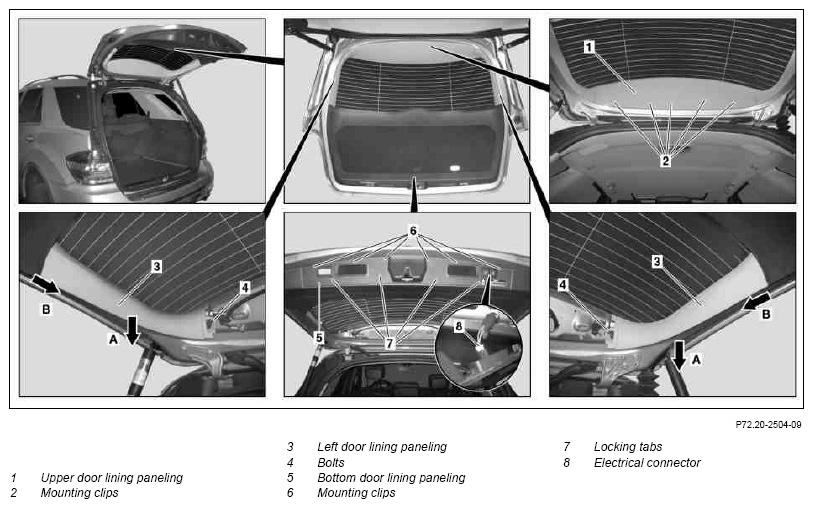

1	Unclip upper door lining paneling (1) from mounting clips (2) and remove	Mounting wedge	Figure
2	Remove screws (4)
3	Unclip side door lining paneling (3) and remove	Pull side door lining paneling (3) downward (arrow A) and pull out of rear-end door toward front (arrow B).
		Mounting wedge	Figure
4	Unclip bottom door lining paneling (5)	Start at right and left side with mounting clips (6), then unclip locking tabs (7).
		Mounting wedge	Figure
5	Disconnect electrical connector (8) and remove bottom door lining paneling downward (5).

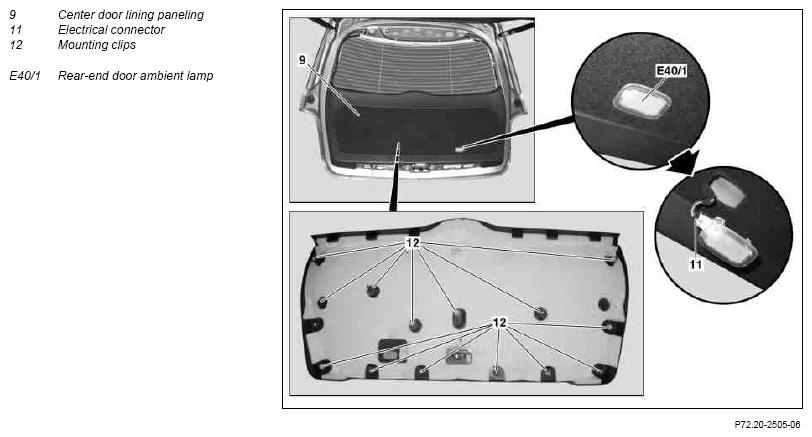

6	Unclip rear-end door ambient light (E40/1) from center door lining paneling (9), disconnect electrical connector (11) and remove rear-end door ambient light (E40/1)
7	Unclip center door lining paneling (9)	Start unclipping at right and left side. Directly move mounting wedge to mounting clips (12).
		Mounting wedge	Figure
8	Remove center door lining paneling (9)	Replace mounting clips (12).
9	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
