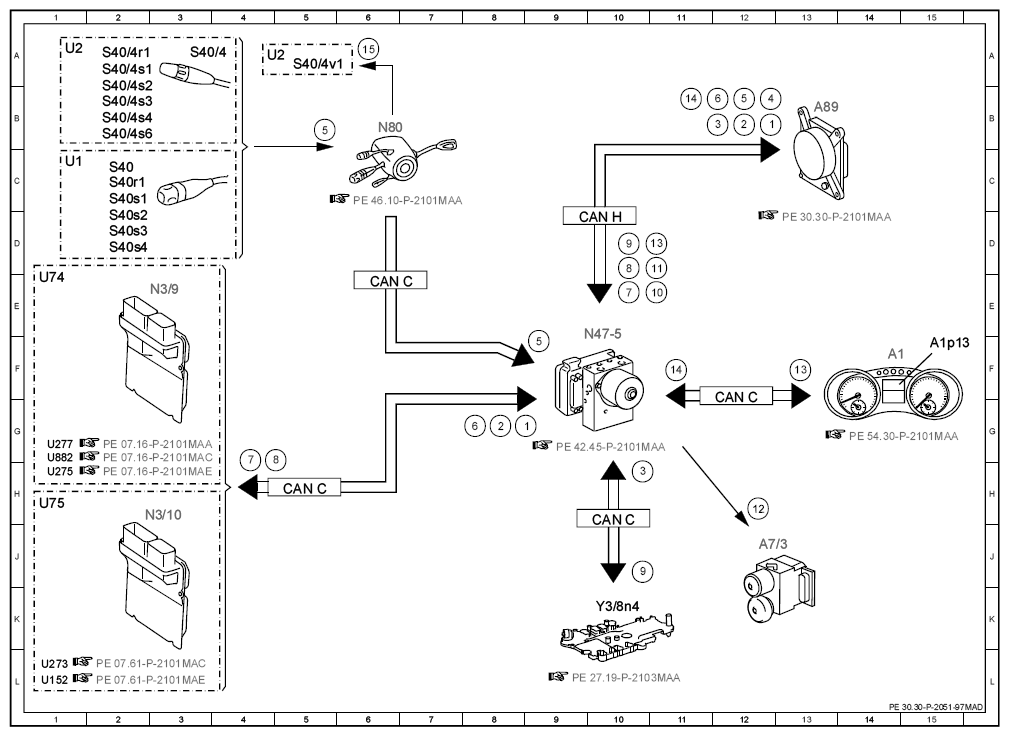

| 1 |
Engine running, signal |
8G |
| 1 |
Engine running, signal |
12B |
| 10 |
Braking torque reduction, request |
11E |
| 11 |
Braking torque increase, request |
11D |
| 12 |
Traction system hydraulic unit, actuation |
12H |
| 13 |
Speed setting, status |
11D |
| 13 |
Speed setting, status |
13F |
| 14 |
Set maximum speed, status |
11B |
| 14 |
Set maximum speed, status |
11F |
| 15 |
Light-emitting diode actuation |
6A |
| 2 |
Drivetrain operational, signal |
8G |
| 2 |
Drivetrain operational, signal |
12B |
| 3 |
Gear range, status |
12B |
| 3 |
Gear range, status |
10H |
| 4 |
Wheel speed, signal |
12B |
| 5 |
CC [TPM] pushbutton switch, status |
9F |
| 5 |
CC [TPM] pushbutton switch, status |
5B |
| 5 |
CC [TPM] pushbutton switch, status |
12B |
| 6 |
Accelerator pedal position, signal |
8G |
| 6 |
Accelerator pedal position, signal |
12B |
| 7 |
Engine torque, reduce request |
10E |
| 7 |
Engine torque, reduce request |
4H |
| 8 |
Engine torque, increase request |
10D |
| 8 |
Engine torque, increase request |
10K |
| 9 |
Engage targeted gear, request |
10D |
| 9 |
Engage targeted gear, request |
10K |
| A1 |
Instrument cluster |
14F |
| A1p13 |
Multifunction display |
15F |
| A7/3 |
Traction system hydraulic unit |
12J |
| A89 |
DTR control unit |
13B |
| CAN C |
Engine compartment CAN |
12G |
| CAN C |
Engine compartment CAN |
6E |
| CAN C |
Engine compartment CAN |
10H |
| CAN C |
Engine compartment CAN |
5H |
| CAN H |
Vehicle dynamics CAN |
10D |
| N3/10 |
ME-SFI [ME] control unit |
3H |
| N3/9 |
CDI control unit |
3E |
| N47-5 |
ESP control unit |
10F |
| N80 |
Steering column module |
6B |
| S40 |
CC [TPM] switch |
2C |
| S40/4 |
CC [TPM] switch |
3A |
| S40/4r1 |
DTR distance potentiometer |
2A |
| S40/4s1 |
Resume from memory |
2A |
| S40/4s2 |
Decelerate and set |
2B |
| S40/4s3 |
Accelerate and set |
2B |
| S40/4s4 |
Off |
2B |
| S40/4s6 |
Variable speed |
2B |
| S40/4v1 |
Yellow LED, variable speed limiter |
5A |
| S40r1 |
DTR distance potentiometer |
2C |
| S40s1 |
Resume from memory |
2C |
| S40s2 |
Decelerate and set |
2D |
| S40s3 |
Accelerate and set |
2D |
| S40s4 |
Off |
2D |
| U1 |
Valid for {{USA}} |
1C |
| U152 |
Valid for engine 156 |
1L |
| U2 |
Valid for all except{{USA}} |
1A |
| U2 |
Valid for all except{{USA}} |
4A |
| U273 |
Valid for engine 272 except 272.973, 273 |
1L |
| U275 |
Valid for engine 642.8 |
1H |
| U277 |
Valid for engine 642.9 |
1G |
| U74 |
Valid for diesel engines |
1E |
| U75 |
Valid for gasoline engines |
1H |
| U882 |
Valid for engine 629 |
1G |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
10K |
