Differential lock operating mechanism - Check/correct fluid level - AP29.00-P-2912G

MODEL 460, 461, 463

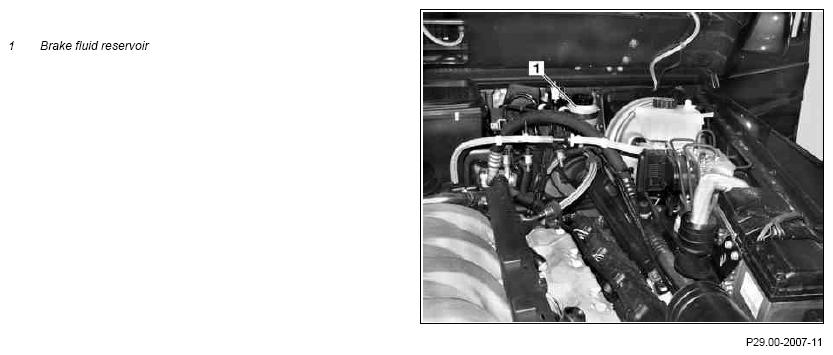

Illustrated on model 461.217

Fig 1: Identifying Brake Fluid Reservoir

Courtesy of MERCEDES-BENZ USA

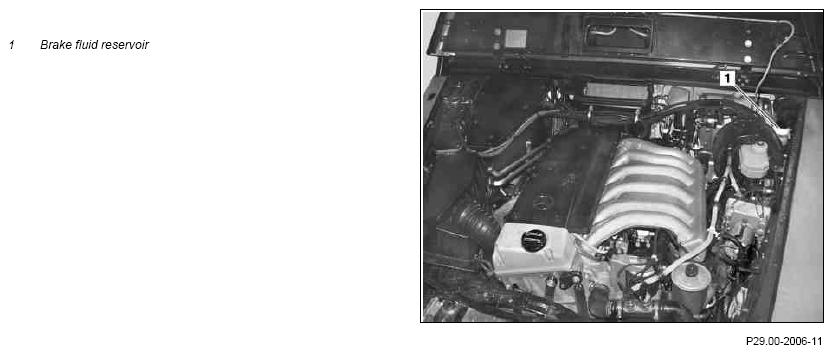

Shown on model 461.302

Fig 2: Identifying Brake Fluid Reservoir

Courtesy of MERCEDES-BENZ USA

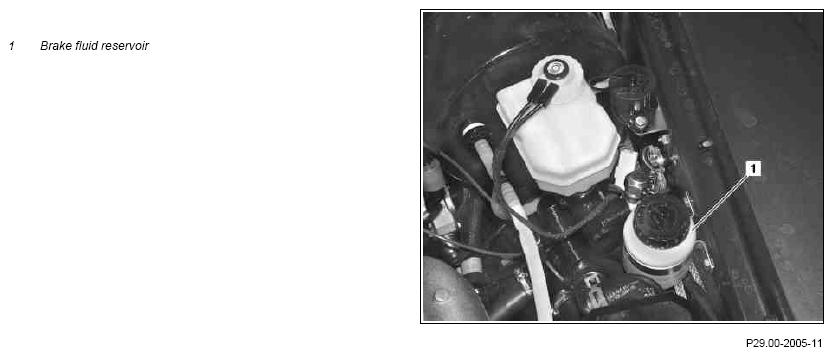

Shown on model 463 up to December 2000

Fig 3: Identifying Brake Fluid Reservoir

Courtesy of MERCEDES-BENZ USA

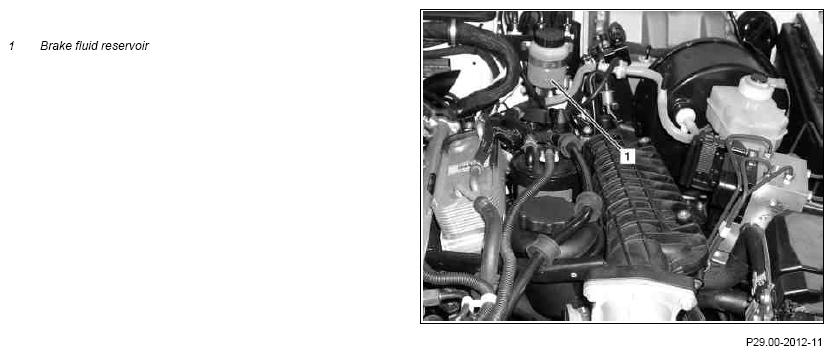

Shown on model 463 as of December 2000

Fig 4: Identifying Brake Fluid Reservoir

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
1	Check fluid level in brake fluid reservoir (1), correct if necessary	The fluid level must be between the "MIN" and "MAX" markings on the brake fluid reservoir (1). Only top up with "DOT 4 Plus" brake fluid. If the fluid level is below the "MIN" marking:↓ Check differential lock operating mechanism for leaks.	AP29.00-P-2953G
	Brake fluid notes		AH42.50-P-0001-01A
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
