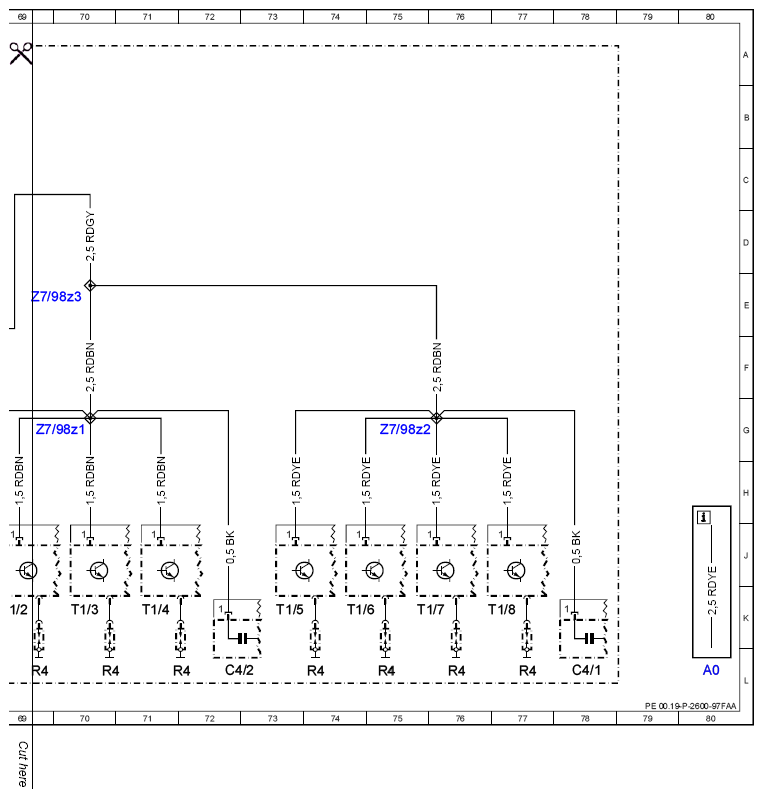

| A0 |
Color code key |
64L |
| A49/5x1 |
Radio data transmission keyboard electrical connector 1 |
47L |
| A49x2 |
Two-way radio electrical connector |
48L |
| A50x1 |
Taximeter electrical connector |
49L |

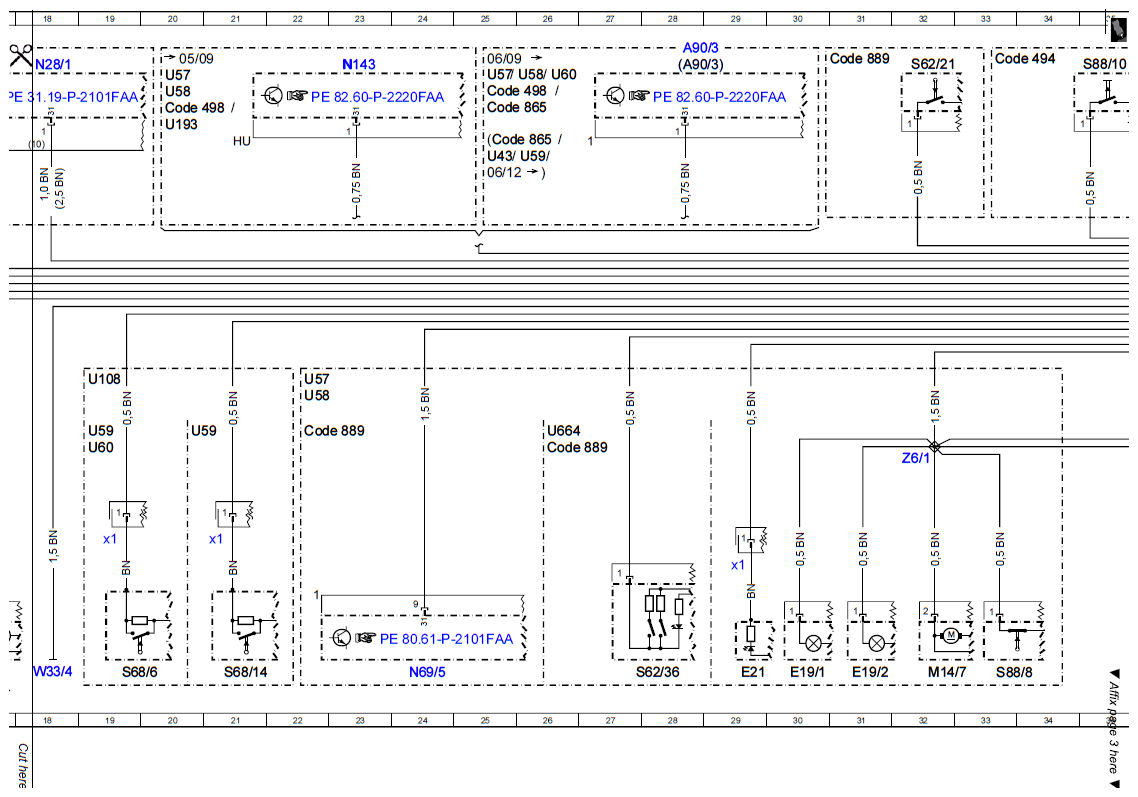

| A90/3 |
TV digital tuner |
28A |
| B29/4 |
Left rear bumper intelligent radar sensor |
57L |
| B29/5 |
Right rear bumper intelligent radar sensor |
56L |

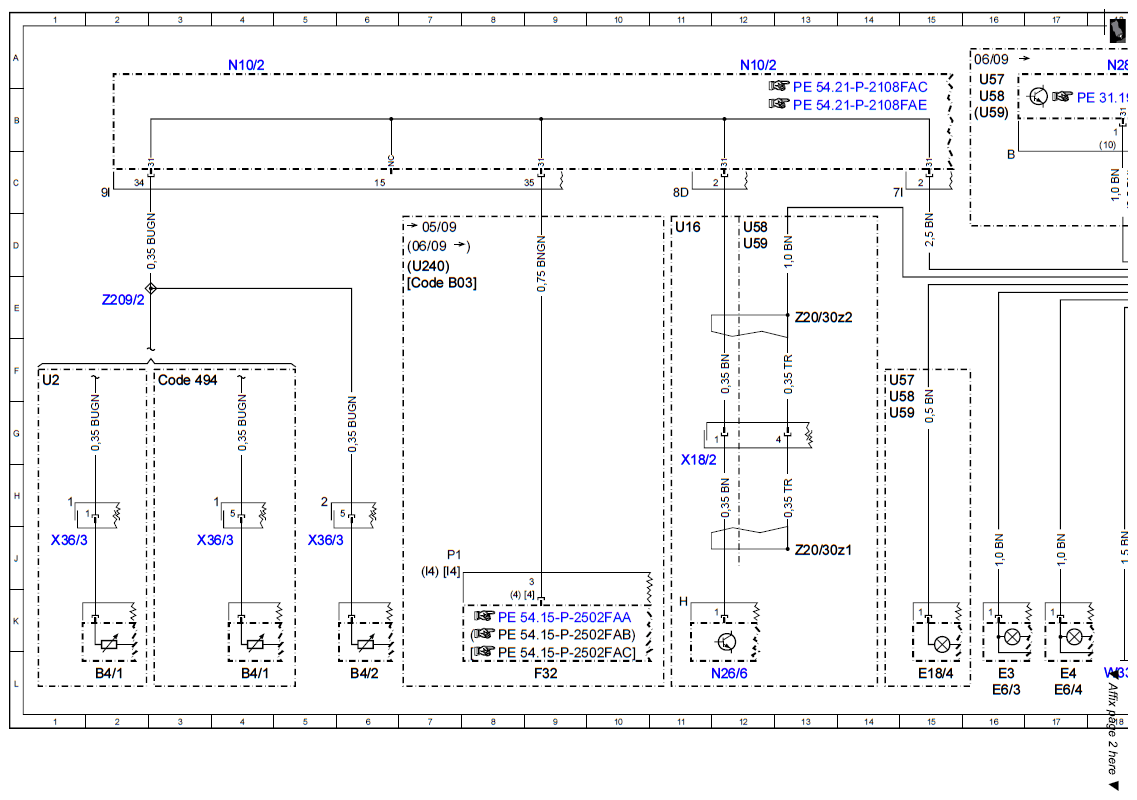

| B4/1 |
Left fuel level indicator sensor |
2L |
| B4/2 |
Right fuel level indicator sensor |
6L |
| Code 494 |
USA version |
33A |
| Code 494 |
USA version |
42B |
| Code B03 |
ECO start/stop function |
7E |
| Code B03 |
ECO start/stop function |
44A |
| E18/4 |
Right luggage compartment lamp |
15L |
| E19/1 |
Left license plate lamp |
30L |
| E19/2 |
Right license plate lamp |
31L |
| E21 |
Center stop lamp |
29L |
| E21x1 |
Center brake lamp electrical connector |
29J |
| E3 |
Left rear lamp unit |
16L |
| E4 |
Right rear lamp unit |
17L |
| E40/2 |
Left tailgate ambient lamp and warning lamp |
37L |
| E40/3 |
Right tailgate ambient lamp and warning lamp |
40L |
| E6/3 |
Left rear side-marker lamp |
16L |
| E6/4 |
Right rear side-marker lamp |
17L |
| F32 |
Front electrical prefuse box |
9L |
| K57/2 |
Additional battery relay |
46A |
| M14/7 |
Tailgate central locking motor |
32L |
| M6/4 |
Tailgate wiper motor |
42L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N143 |
TV tuner control unit |
23A |
| N26/6 |
Interior protection and tow-away protection control unit |
12L |
| N26/9 |
Special-purpose vehicle multifunction control unit |
52L |
| N28/1 |
Trailer recognition control unit |
18A |
| N28/1 |
Trailer recognition control unit |
38A |
| N69/5 |
KEYLESS-GO control unit |
24L |
| S62/21 |
Tailgate KEYLESS GO button |
32A |
| S62/36 |
Tailgate control button |
28L |
| S68/14 |
Center rear seat belt buckle switch |
21L |
| S68/14x1 |
Center rear seat belt buckle switch electrical connector |
21J |
| S68/6 |
Right rear seat belt buckle switch |
19L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
19J |
| S88/10 |
Trunk lid emergency opening switch |
35A |
| S88/6 |
Tailgate contact switch |
38L |
| S88/8 |
Tailgate external operation switch |
33L |
| U108 |
Valid for rear seat belt buckles |
19F |
| U123 |
Valid for taxi electrical system |
45F |
| U16 |
Valid for ATA [EDW] with tow-away protection and interior protection |
11D |
| U193 |
Valid for TV and Video |
20B |
| U2 |
Valid for all except USA |
40B |
| U240 |
Valid for all except ECO start/stop function |
7D |
| U52 |
Valid for Japan |
|
| U57 |
Valid for model 204.2 |
22F |
| U57 |
Valid for model 204.2 |
16A |
| U57 |
Valid for model 204.2 |
39H |
| U57 |
Valid for model 204.2 |
36A |
| U57 |
Valid for model 204.2 |
20A |
| U58 |
Valid for model 204.0 |
22F |
| U58 |
Valid for model 204.0 |
12D |
| U58 |
Valid for model 204.0 |
16B |
| U58 |
Valid for model 204.0 |
38H |
| U58 |
Valid for model 204.0 |
36B |
| U58 |
Valid for model 204.0 |
20B |
| U59 |
Valid for model 204.9 |
12D |
| U59 |
Valid for model 204.9 |
16B |
| U59 |
Valid for model 204.9 |
40A |
| U60 |
Valid for model 204.3 |
26A |
| U664 |
Valid for automatic tailgate |
26G |
| U671 |
Valid for taximeter preinstallation |
49G |
| U683 |
Valid for preinstallation for two-way radio system in glove compartment |
48G |
| U763 |
Valid for preinstallation for two-way radio system in trunk |
46G |
| U765 |
Valid for taxi peripheral device preinstallation |
45G |
| U82 |
Valid for KEYLESS GO |
|
| U82 |
Valid for KEYLESS GO |
|
| U82 |
Valid for KEYLESS GO |
|
| U910 |
Valid for Blind Spot Assist |
54D |
| W33/4 |
Fuel tank filler neck ground point |
18L |

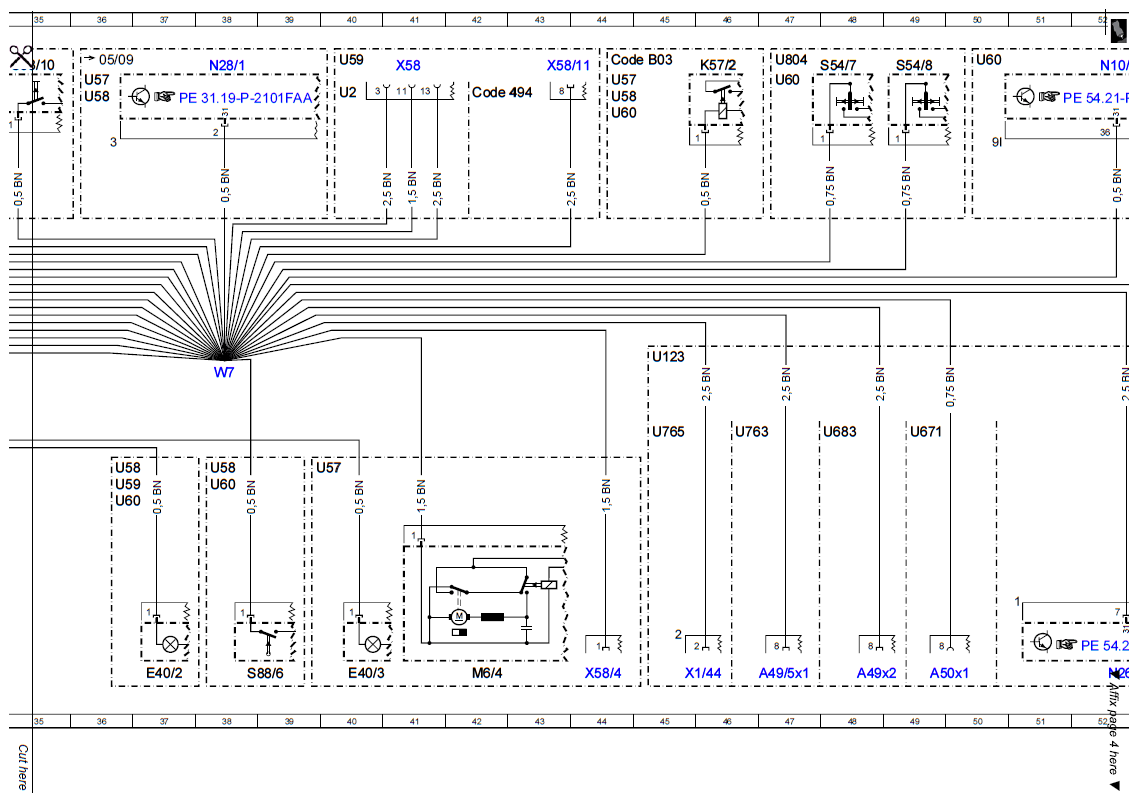

| W7 |
Right wheelhouse trunk ground point |
38F |
| X1/44 |
Taxi peripheral device electrical connector |
45L |
| X18/2 |
Interior/roof electrical connector |
11H |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
55E |
| X36/3 |
Fuel pump harness electrical connector |
5J |
| X36/3 |
Fuel pump harness electrical connector |
1J |
| X58 |
Trailer socket |
41A |
| X58/11 |
Trailer socket (7-pin) |
43A |
| X58/4 |
Load compartment socket |
44L |
| Z20/30z1 |
Tracer wire connector sleeve |
13J |
| Z20/30z2 |
Tracer wire connector sleeve |
13E |
| Z209/2 |
Fuel pump control unit connector sleeve |
2E |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
56G |
| Z6/1 |
Circuit 31 connector sleeve |
32G |
