Remove/install fuel distributor with injection valves (ME-SFI) - AR07.03-P-1451TS

ENGINES 272.922/943/964/972/944 in MODEL 211

ENGINES 273.960/962 in MODEL 211

ENGINES 272.943/964, 273.960 in MODEL 219

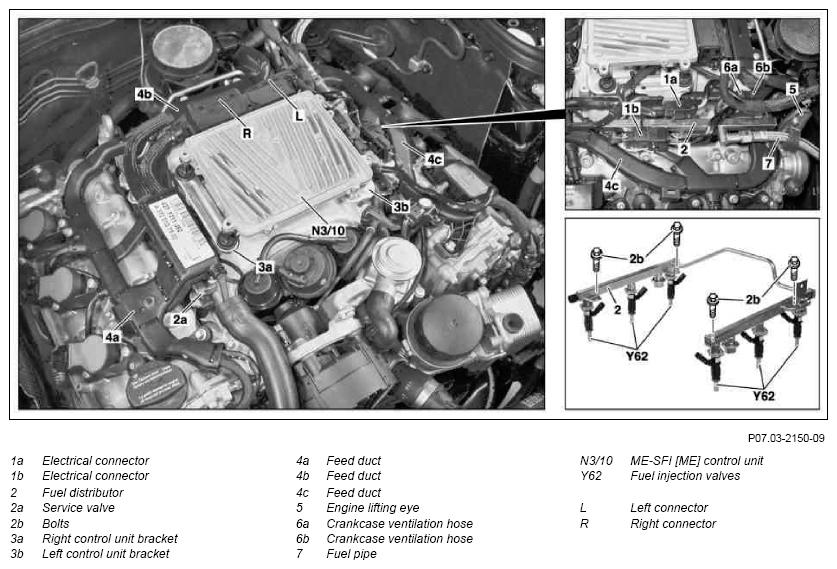

Fig 1: Identifying Fuel Distributor With Injection Valves (ME-SFI) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Turn key in ignition lock to position "0"
2	Remove air filter housing		AR09.10-P-1150TS
3	Disconnect electrical connectors (1a, 1b)
4	Remove jack for electrical connector (1b) on fuel distributor (2)	Install new cable ties.
5	Disconnect right connector (R) at ME-SFI [ME] control unit (N3/10)
6	Detach ME-SFI [ME] control unit (N3/10) from right control unit bracket (3a) and from left control unit bracket (3b) and lay to one side	Do not disconnect left connector (L) at ME- SFI [ME] control unit (N3/10).
7	Remove right control unit bracket (3a)		*BA07.08-P-1002-01A
8	Detach feed duct (4a) from cylinder head cover, intake manifold and rear right engine suspension lug		*BA15.18-P-1001-01B
			*BA15.18-P-1002-01B
			*BA15.18-P-1003-01B
9	Detach feed duct (4b) from intake manifold		*BA15.18-P-1001-01B
10	Remove feed duct (4c) from cylinder head cover		*BA15.18-P-1002-01B
11	Detach rear left engine lifting eye (5) from cylinder head		*BA01.30-P-1005-01O
12	Disconnect hoses (6a, 6b) from crankcase ventilation system
13	Disconnect electrical connectors at fuel injection valves (Y62)
14	Reduce fuel pressure via service valve (2a)		AR07.03-P-1460-01VA
			*BA07.03-P-1004-01B
			Figure
15	Disconnect fuel line (7) from fuel distributor (2)	Catch escaping fuel with an absorbent rag. Seal connections immediately with stop plugs.
			*BA07.03-P-1001-01B
			Fig 2
16	Remove bolts (2b) and take off fuel distributor (2) with fuel injection valves (Y62)	Replace O-rings of the fuel injection valves (Y62). Apply lubricant paste O-rings.
			*BA07.03-P-1002-01B
		Lubricant paste	*BR00.45-Z-1002-06A
17	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
18	Carry out an engine test run and check fuel system for leaks

CONTROL UNIT

Number	Designation		Engine 272	Engine 273
BA07.08-P-1002-01A	Bolt, control unit bracket to resonance intake manifold	Nm	8	8

ENGINE WIRING HARNESS

Number	Designation		Engine 272	Engine 273
BA15.18-P-1001-01B	Bolt, feed duct to resonance intake manifold	Nm	8	8
BA15.18-P-1002-01B	Bolt, feed duct to cylinder head cover	Nm	8	8
BA15.18-P-1003-01B	Bolt, feed duct to engine lifting eye	Nm	8	8

CYLINDER HEAD

Number	Designation			Engine 272	Engine 273
BA01.30-P-1005-01O	Bolt, lifting eye to cylinder head	M8	Nm	20	20

INJECTORS, INJECTION VALVES, LINES

Number	Designation			Engine 272	Engine 273
BA07.03-P-1001-01B	Union nut, fuel line to fuel distributor		Nm	20	20
BA07.03-P-1002-01B	Bolt, fuel distributor to resonance intake manifold		Nm	9	9
BA07.03-P-1004-01B	Protective cap on service valve	Plastic	Nm	2	-
BA07.03-P-1004-01B	Protective cap on service valve	Metal	Nm	15	-

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
