Remove contacts from FIN sensor contact connector pt. 2 - AR00.19-P-0120-13A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unfasten secondary release on version with disk

1. Using a suitable tool, push the disk out of the last detent in direction shown by arrow.

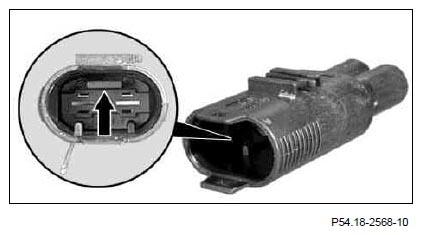

   Fig 5: Pushing Disk Out Of Last Detent

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unpin female contacts from connector

2. Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of connector (1).

   This results in the spring shackles (2) of the contact pin being compressed.

3. A slight tug on the corresponding cable will remove the contact pin from the connector. 3
   Fig 6: Inserting Blade Holder From Front Side Though Openings At Contact Cavity Of Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
