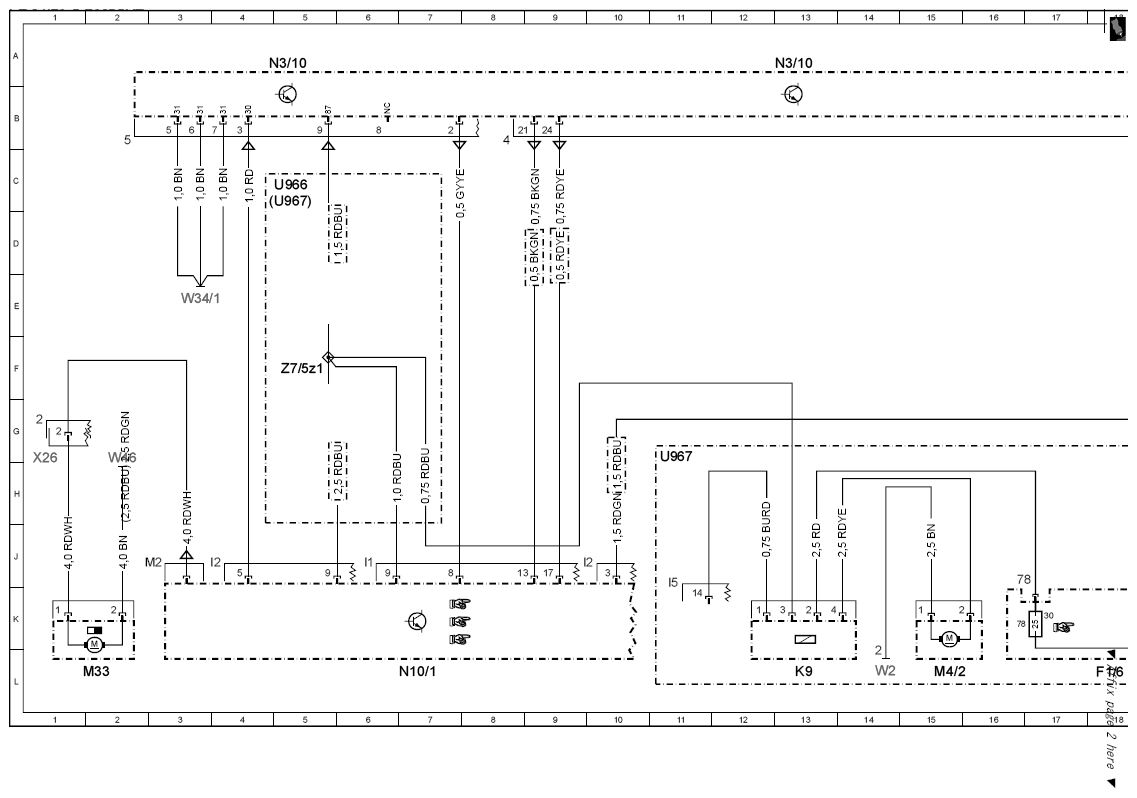

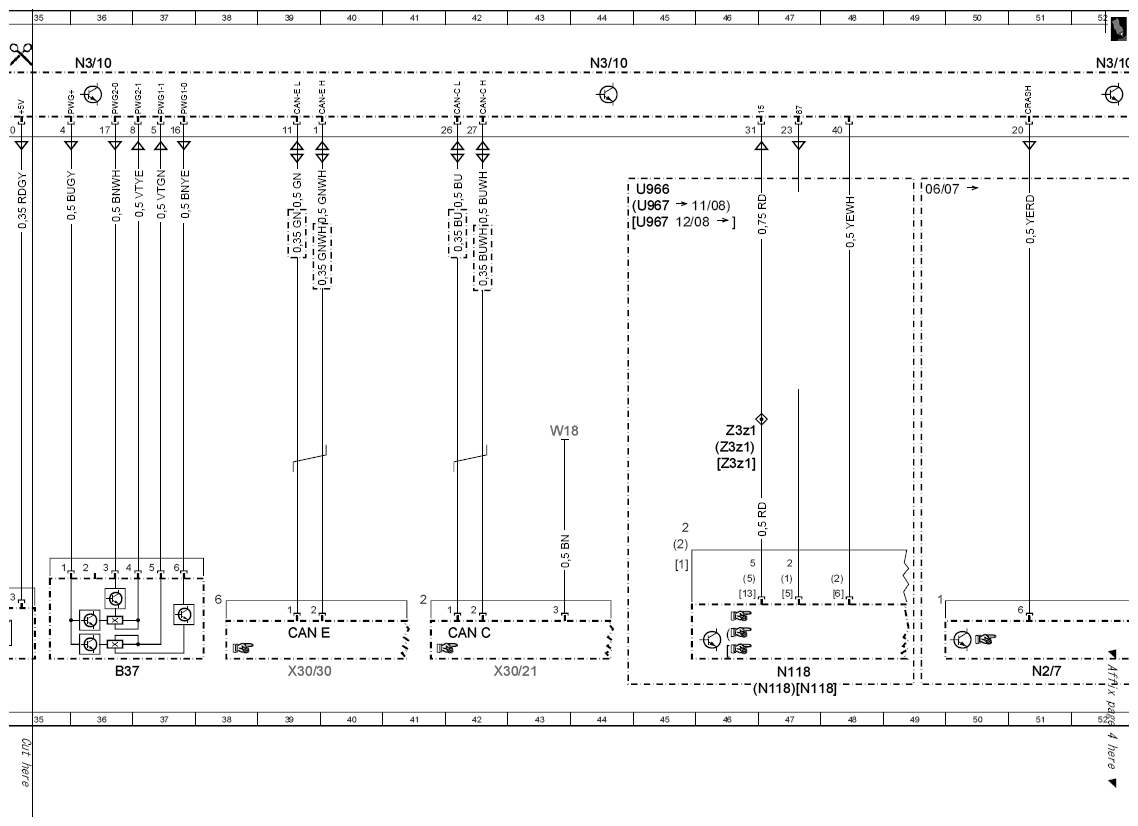

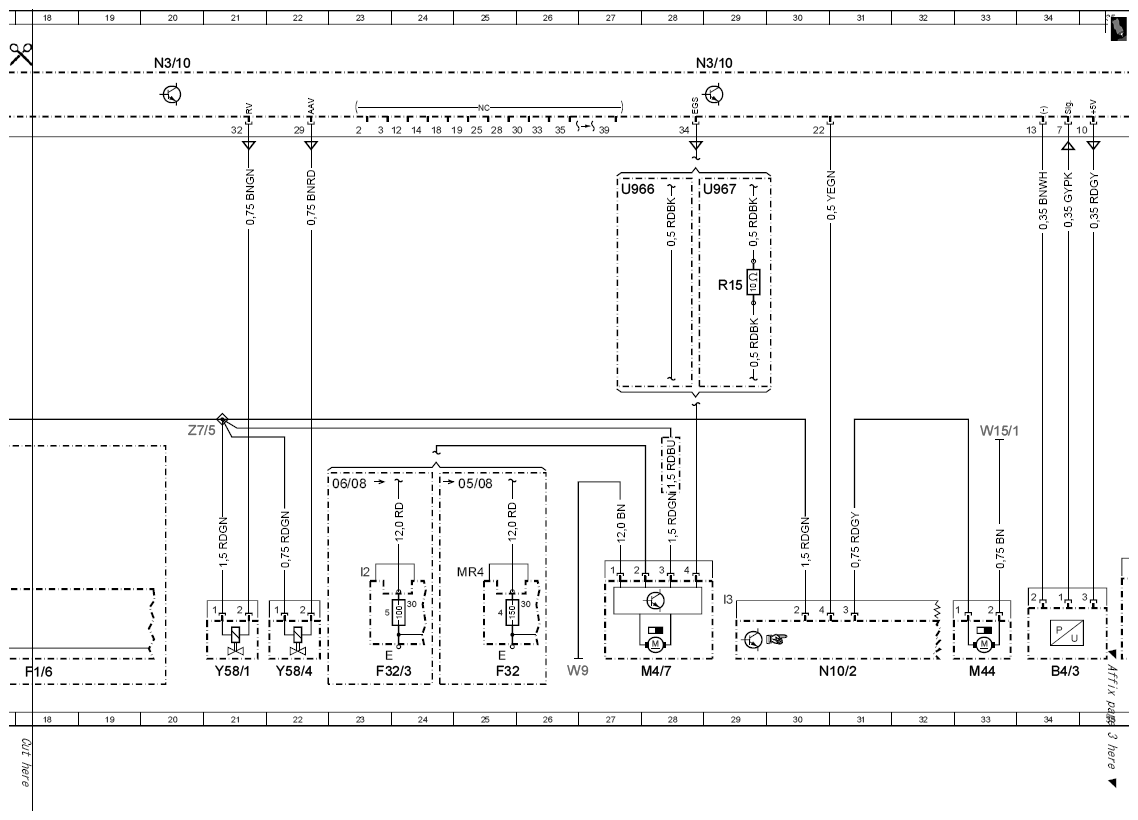

| B37 |
Accelerator pedal sensor |
36L |
| B4/3 |
Fuel tank pressure sensor |
34L |
| CAN C |
Drive train CAN |
42K |
| CAN E |
Chassis CAN |
39K |
| F1/6 |
Right instrument panel fuse box |
18L |
| F1/6f78 |
Fuse 78 |
16K |
| F32 |
Front prefuse |
25L |
| F32/3 |
Engine compartment prefuse box |
23L |
| F32/3f5 |
Fuse 5 |
23K |
| F32f4 |
Fuse 4 |
25K |

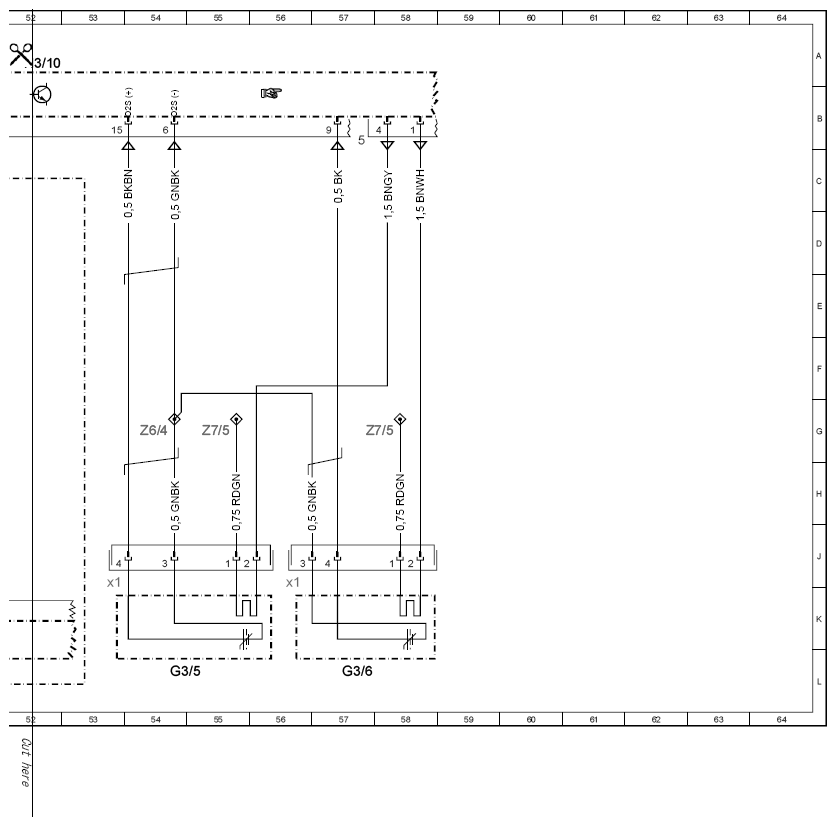

| G3/5 |
Left O2 sensor downstream of TWC [KAT] |
54L |
| G3/5x1 |
Left O2 sensor downstream of TWC [KAT] connector |
53J |
| G3/6 |
Right O2 sensor downstream of TWC [KAT] |
57L |
| G3/6x1 |
Right O2 sensor downstream of TWC [KAT] connector |
56J |
| K9 |
Additional fan relay |
13L |
| M33 |
Electric air pump |
2L |
| M4/2 |
Coolant additional fan |
15L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
28L |
| M44 |
Charge air cooler circulation pump |
33L |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
31L |
| N118 |
Fuel pump control unit |
47L |
| N118 |
Fuel pump control unit |
47L |
| N2/7 |
Restraint systems control unit |
51L |
| N3/10 |
ME-SFI [ME] control unit |
5A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
29A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
13A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| R15 |
Electric suction fan series resistor |
29E |
| U966 |
Valid for engine 275.953 |
27C |
| U966 |
Valid for engine 275.953 |
45C |
| U966 |
Valid for engine 275.953 |
5C |
| U967 |
Valid for engine 275.982 |
28C |
| U967 |
Valid for engine 275.982 |
44D |
| U967 |
Valid for engine 275.982 |
44C |
| U967 |
Valid for engine 275.982 |
4C |
| U967 |
Valid for engine 275.982 |
11G |
| W15/1 |
Ground (right footwell) |
33G |
| W18 |
Ground (left front seat crossmember) |
43G |
| W2 |
Ground (right front, at lamp unit) |
14L |
| W34/1 |
Ground (electronics - left footwell) |
3E |
| W46 |
Ground (air pump) |
2H |
| W9 |
Ground (left front, at lamp unit) |
26L |
| X26 |
Interior and engine wiring harness connector |
1H |
| X30/21 |
Drive train CAN voltage distributor connector |
42L |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
39L |
| Y58/1 |
Purge control valve |
21L |
| Y58/4 |
Activated charcoal filter shutoff valve |
22L |
| Z3z1 |
Tml. 15 connector sleeve |
46G |
| Z3z1 |
Tml. 15 connector sleeve |
46G |
| Z3z1 |
Tml. 15 connector sleeve |
46H |
| Z6/4 |
Ground connector sleeve (sensor downstream of TWC) |
54G |
| Z7/5 |
Circuit 87 connector sleeve |
20G |
| Z7/5 |
Circuit 87 connector sleeve |
55G |
| Z7/5 |
Circuit 87 connector sleeve |
58G |
| Z7/5z1 |
Circuit 87 connector sleeve |
5F |
