Electrical function schematic for selection of telephone antenna, function - PE82.95-U-2062-97CAA

Code:	Designation:	Position:
1	Circuit 15R/circuit 15, status ON	4E
1	Circuit 15R/circuit 15, status ON	9G
2	Telephone, signal	3G
2	Telephone, signal	3D
2	Telephone, signal	4C
A2/25	Emergency call system antenna splitter	3C
A2/49a2	GPS antenna	2J
A2/52	Emergency call antenna	2J
A2/54	Emergency call system left backup antenna	6C
A2/55	Emergency call system right backup antenna	6C
A8/1	Transmitter key	9J
CAN D	Diagnostic CAN	5F
CAN E	Chassis CAN	8H
N123/4	Emergency call system control unit	3E
N73	EIS [EZS] control unit	8H
N93	Central gateway control unit	8E

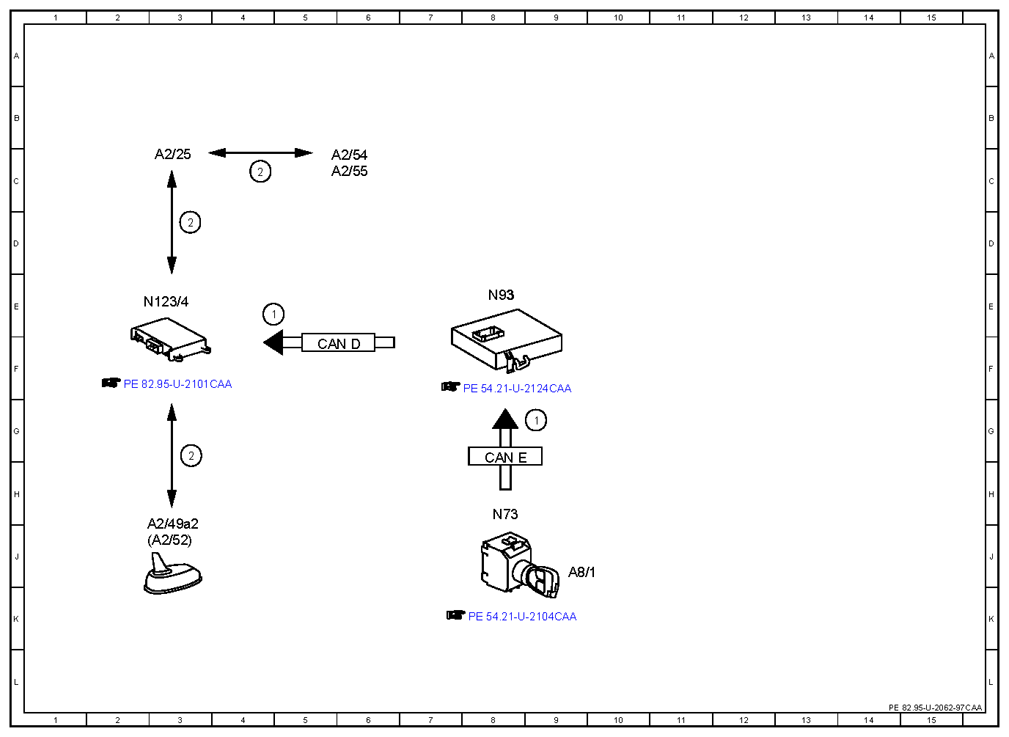

Fig 1: Selection Of Telephone Antenna - Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
