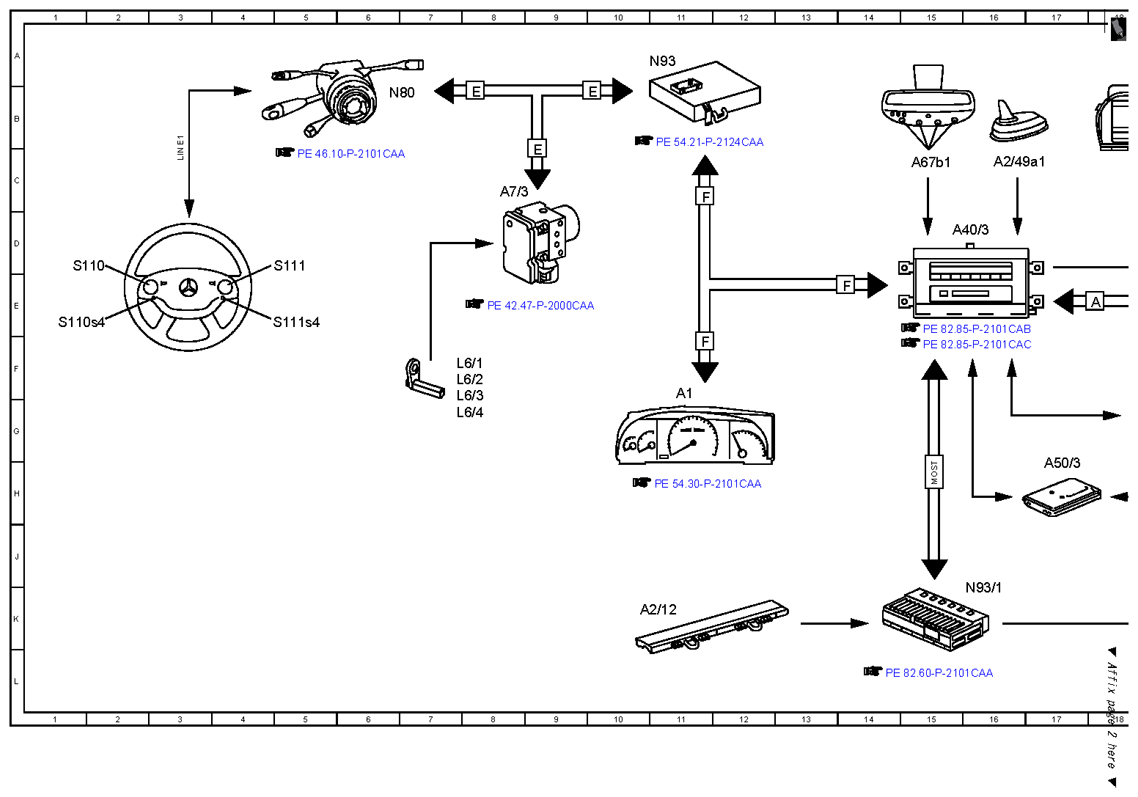

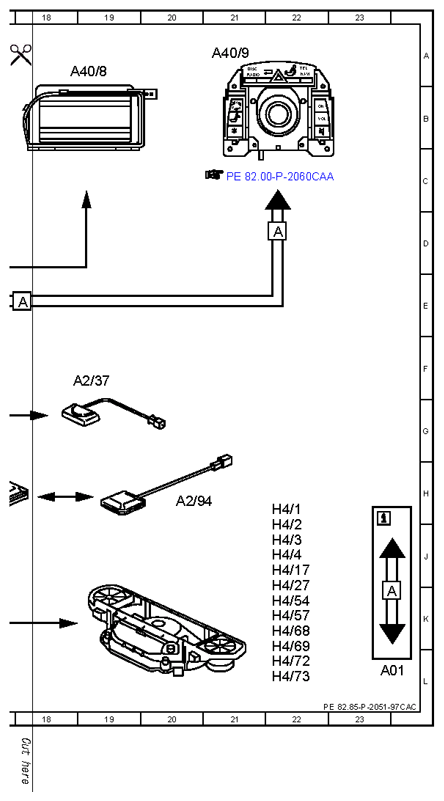

Electrical function schematic for navigation system - PE82.85-P-2051-97CAC
MODEL 216 with CODE (498) Japan version up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 23L |
| A1 | Instrument cluster | 11F |
| A2/12 | Rear window antenna amplifier module | 11K |
| A2/37 | VICS control unit | 18F |
| A2/49a1 | Telephone antenna | 16B |
| A2/94 | Electronic toll collection (ETC) antenna | 19H |
| A40/3 | COMAND control unit | 16D |
| A40/8 | COMAND display | 19A |
| A40/9 | Front central operating unit | 21A |
| A50/3 | Electronic toll collection (ETC) control unit | 17G |
| A67b1 | Hands-free system microphone group | 15C |
| A7/3 | Traction system hydraulic unit | 8C |
| H4/1 | Left door speaker group | 22H |
| H4/17 | Bass module speaker | 22J |
| H4/2 | Right door speaker group | 22H |
| H4/27 | Center cockpit speaker (centerfill) | 22J |
| H4/3 | Left door rear speaker | 22J |
| H4/4 | Right door rear speaker | 22J |
| H4/54 | Left rear surround speaker | 22K |
| H4/57 | Right rear surround speaker | 22K |
| H4/68 | Left door Sound tweeter | 22K |
| H4/69 | Right door Sound tweeter | 22K |
| H4/72 | Left door Sound woofer and midrange speaker group | 22L |
| H4/73 | Right door Sound woofer and midrange speaker group | 22L |
| L6/1 | Left front rpm sensor | 8F |
| L6/2 | Right front rpm sensor | 8F |
| L6/3 | Left rear rpm sensor | 8F |
| L6/4 | right rear rpm sensor | 8G |
| LIN E1 | Steering LIN | 3B |
| MOST | Media Oriented System Transport | 15H |
| N80 | Steering column module | 7B |
| N93 | Central gateway control unit | 11A |
| N93/1 | Audio tuner control unit | 16J |
| S110 | Left multifunction steering wheel button group | 2D |
| S110s4 | "Back" and SBS off button | 5E |
| S111 | Right multifunction steering wheel button group | 5D |
| S111s4 | VCS [SBS] on button | 2E |
