Adjust wiper arms - AR82.30-P-6100-01SX

WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation			Model 216	Model 221
BE82.30-P-1003-01L	Angle of incidence of wiper arm on driver-side in park position	Left-hand drive vehicle	∠°	+2.0 to +6.0	+2.0 to +6.0
BE82.30-P-1003-01L		Right-hand drive vehicle	∠°	-2.0 to -6.0	-2.0 to -6.0
BE82.30-P-1004-01L	Angle of incidence of wiper arm on front passenger side in park position	Left-hand drive vehicle	∠°	+2.0 to +6.0	+2.0 to +6.0
BE82.30-P-1004-01L		Right-hand drive vehicle	∠°	-2.0 to -6.0	-2.0 to -6.0

Fig 1: Identifying Adjustment Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

The driver-side wiper arm or the passenger side wiper arm, in the lower section of the wipe pattern, has to be adjusted at a distance of approx. 100 mm (driver-side wiper arm) or approx. 70 mm (passenger side wiper arm) to the water collector.

The driver-side wiper arm or the passenger side wiper arm is always adjusted in the lower section of the wipe pattern.

Take adjustment levers (Z4) from the adjustment tool set.

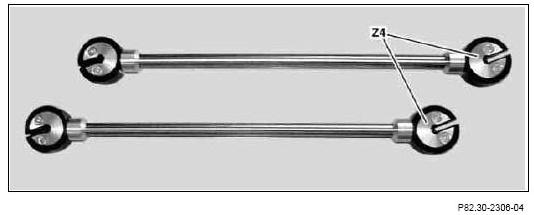

Fig 2: Identifying Adjustment Levers
Courtesy of MERCEDES-BENZ USA

Shown on model 221, driver-side wiper arm in the lower section of the wipe pattern
Install angle gauge (A) with adapter on wiper arm to be adjusted.
Lower wiper arm until all three contact points of the base of the angle gauge (A) touch the windshield.
Position adjustment lever (Z4) as far away from each other as possible.
The wiper arm is twisted with the aid of the adjustment lever (Z4), which was positioned next to the angle gauge (A). The second adjustment lever (Z4) is used as a counterholder.
Push adjustment lever (Z4) into the required direction, until the angle of incidence of the wiper arm is in the tolerance range.
Remove adjustment lever (Z4) from wiper arm.
Detach angle gauge (A) with adapter from adjusted wiper arm.

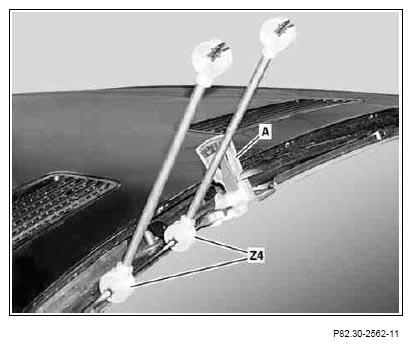

Fig 3: Identifying Angle Gauge And Adjustment Levers
Courtesy of MERCEDES-BENZ USA
