Active body control (ABC), block diagram - GF32.50-P-0001-02SX

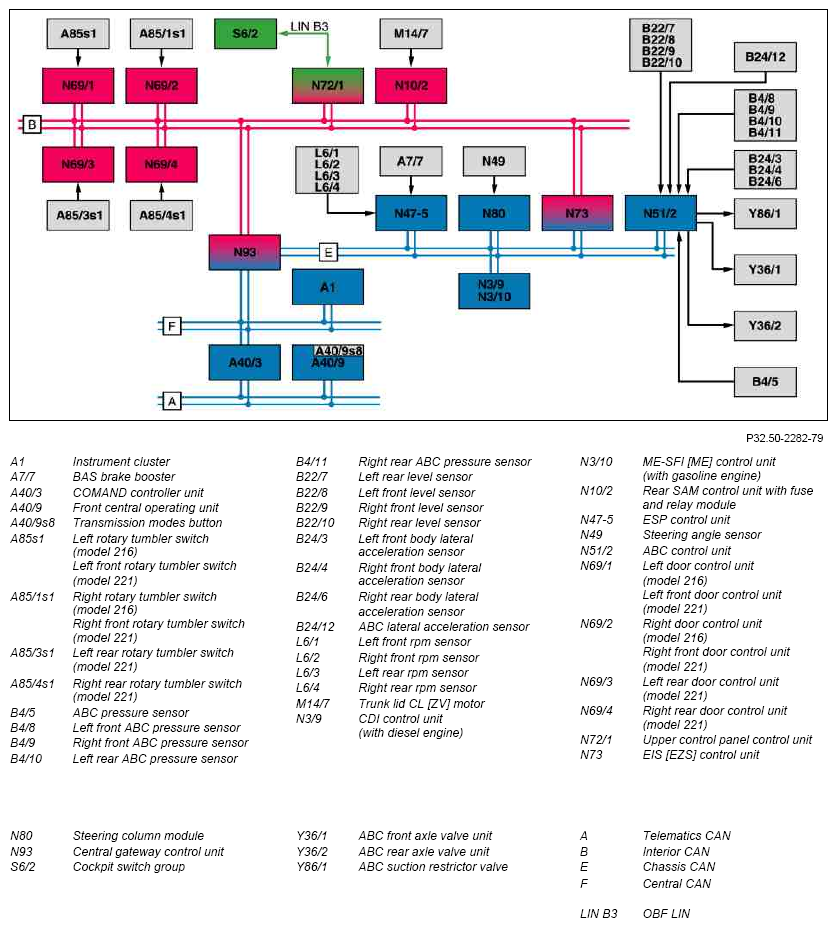

Fig 1: Active Body Control (ABC), Block Diagram

G07536565

Courtesy of MERCEDES-BENZ USA
