Active Body Control (ABC), location of components - GF32.50-P-0001-01LEA

Shown on model 221.0 up to YoM 09 model refinement package

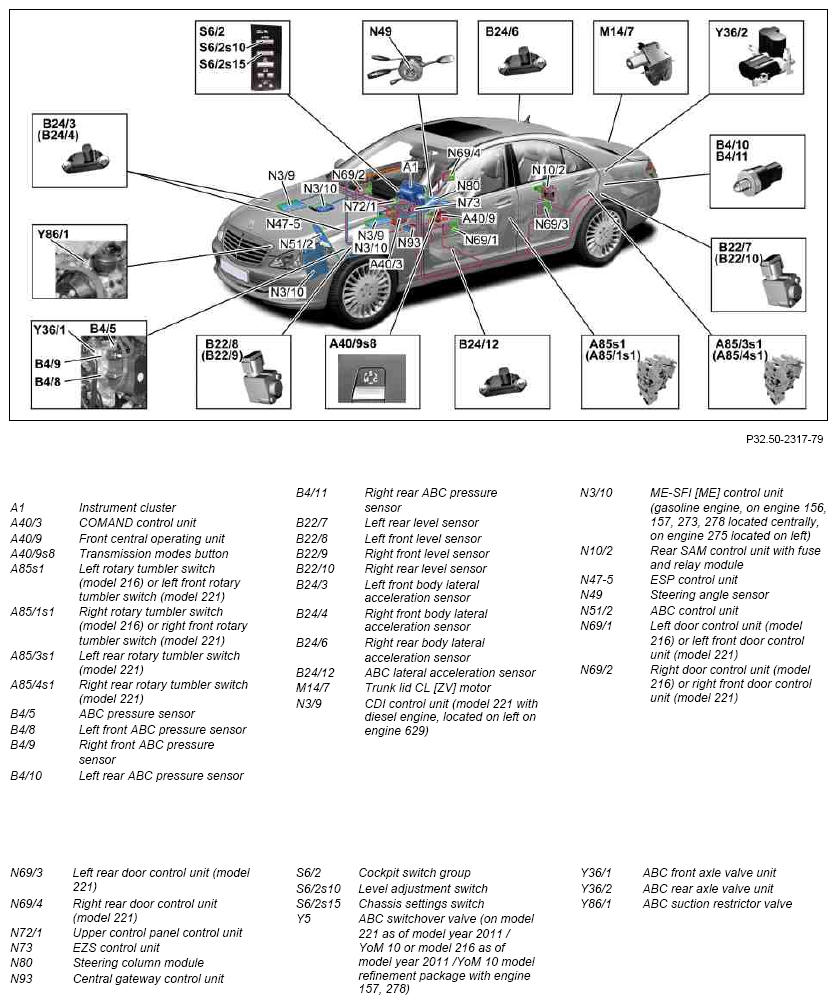

Fig 1: Identifying Active Body Control (ABC) Components Location

Courtesy of MERCEDES-BENZ USA
