Remove/install rear control unit - AR67.39-P-4170SC
MODEL 216.3
| Remove/install | |||
| 1.1 | Buffer basic data of rear control unit (N22/6) in STAR DIAGNOSIS. | When replacing rear control unit (N22/6). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove side rear side paneling | AR68.30-P-4780SC | |

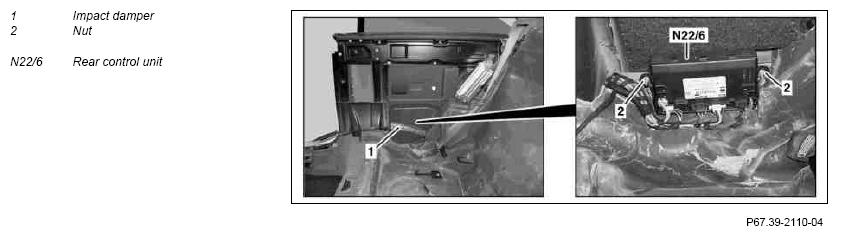

| 3 | Remove impact damper (1). | ||
| 4 | Unscrew nuts (2) | ||
| 5 | Remove rear control unit (N22/6) from bracket and disconnect all electrical connectors. | ||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 6 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnostic system, Compact Passenger Car | 6511 1801 00 |
