Adjusting rear side windows - AR67.30-P-4200SC

MODEL 216.3

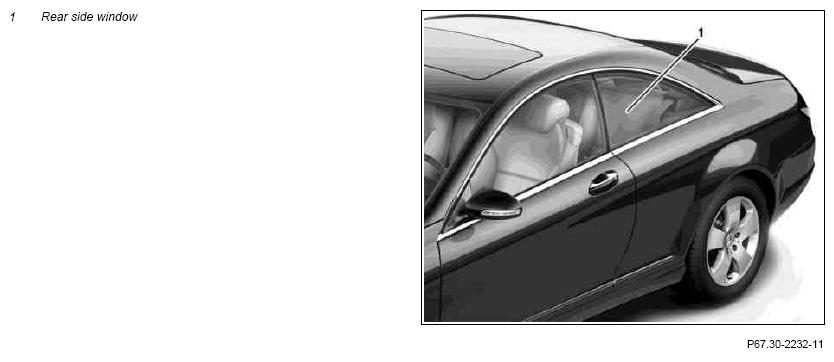

Fig 1: Identifying Rear Side Window

Courtesy of MERCEDES-BENZ USA

	Adjust
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever  extremities.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0009-01A
1	Check adjustment of window in front door, correct if necessary.		AR72.10-P-1950SC
2	Check tension of rear side window (1), adjust if necessary.	Expose power window on rear side window (1) in lower area to adjust pretension of rear side window (1). It is not necessary to remove the rear side window sealing rail (1) as well as the rear sidebag unit, and the damping material must be only detached in the lower area of the inner panel. Refer to: ↓	AR67.30-P-4200-03SC
		Remove/install power window on rear side window	AR67.39-P-4150SC
3	Check basic setting for rear side window (1), correct if necessary.		AR67.30-P-4200-07SC
		Gap between front door window and rear side window, dimension "b"	*BE67.30-P-1002-01C
			*BA67.30-P-1001-01B
		Remove center paneling on rear side paneling for basic adjustment of the rear side window (1). Refer to: ↓	*129589032100
		Remove/install side paneling in rear	AR68.30-P-4780SC
4	Move rear side window (1) to upper end position and clean.	Cleaner	*BR00.45-Z-1007-04A

TEST VALUES FOR REAR SIDE WINDOW

Number	Designation			Model 216
BE67.30-P-1002-01C	Gap between front door window and rear side window	Dimension "B"	mm	6.0 to 8.0

SIDE WINDOWS

Number	Designation		Model 216
BA67.30-P-1001-01B	Screw for rear side widow on window lift mechanism	Nm	15

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1007-04A	Cleaner, plastic windows, fabric top 500 ml	A 001 986 38 71
