Remove/install glass adjustment drive - AR88.70-P-9060TX
MODEL 216, 219, 221

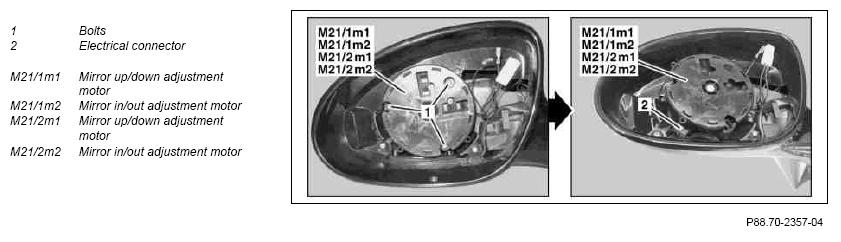

Shown on model 219
| Remove/install | ||
|---|---|---|
| 1 | Remove mirror glass | AR88.70-P-9020TX2 |
| 2 | Remove bolts (1) | |
| 3 | Remove mirror up/down adjustment motor (M21/1m1) and mirror in/out adjustment motor (M21/1m2) or mirror up/down adjustment motor (M21/2m1) and mirror in/out adjustment motor (M21/2m2) | |
| 4 | Disconnect electrical connector (2) | |
| 5 | Install in the reverse order |
