Remove steering column switch module - AR54.25-P-2800-01SX

When the steering wheel is detached the fanfare horns and airbag clock spring contact (A45) must not be twisted otherwise this can be damaged.

1. Unscrew bolt (1).

   Bolt (1) is secured to prevent it from falling out.

2. Disconnect steering column switch module (2) complete with fanfare horn and airbag clock spring contact (A45) from jacket tube.

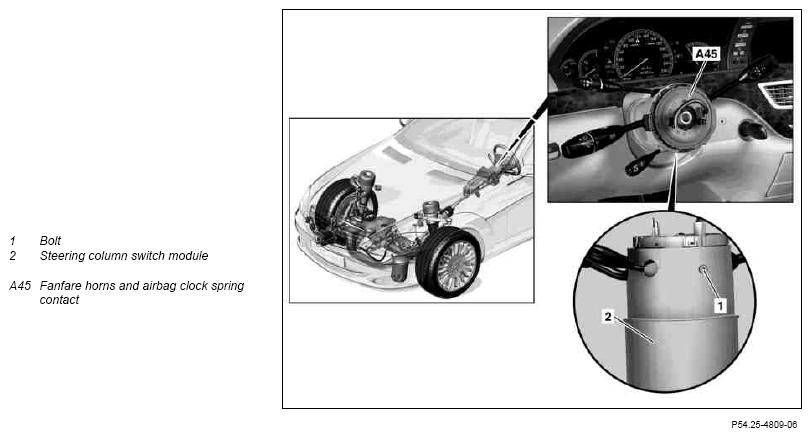

   Fig 1: Identifying Bolt, Steering Column Switch Module And Fanfare Horns And Airbag Clock Spring Contact

   Courtesy of MERCEDES-BENZ USA
