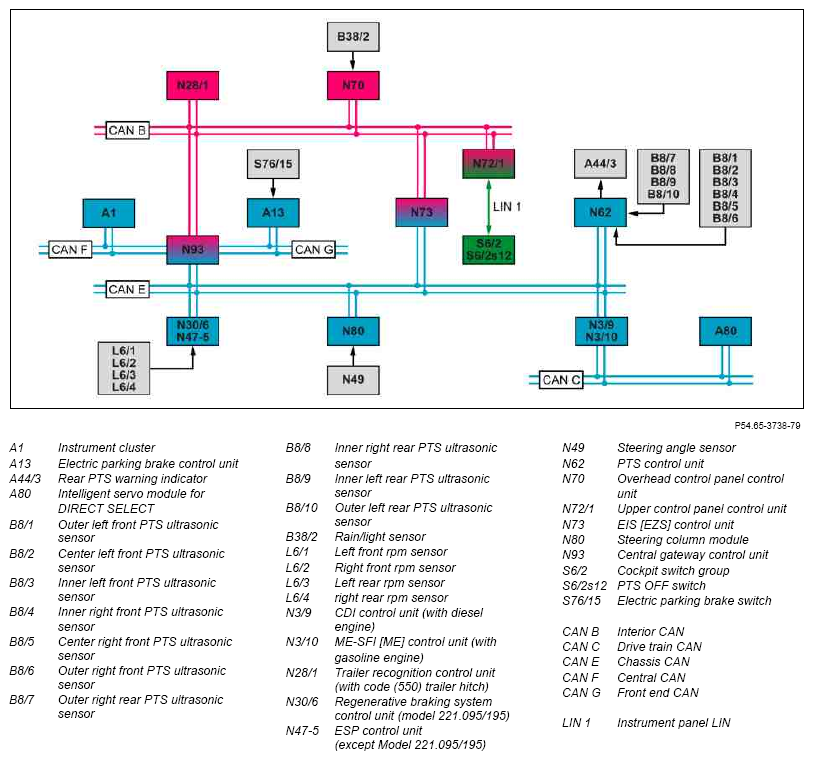

Parking system, block diagram - GF54.65-P-0006-02LE
MODEL 216.3 with CODE (220) PARKTRONIC with CODE (230) Advanced Parking Guidance as of Model Year 2011 /AEJ 10 MOPF
MODEL 221.0 /1 with CODE (220) PARKTRONIC with CODE (230) Advanced Parking Guidance as of Model Year 2010 /AEJ 09 MOPF
