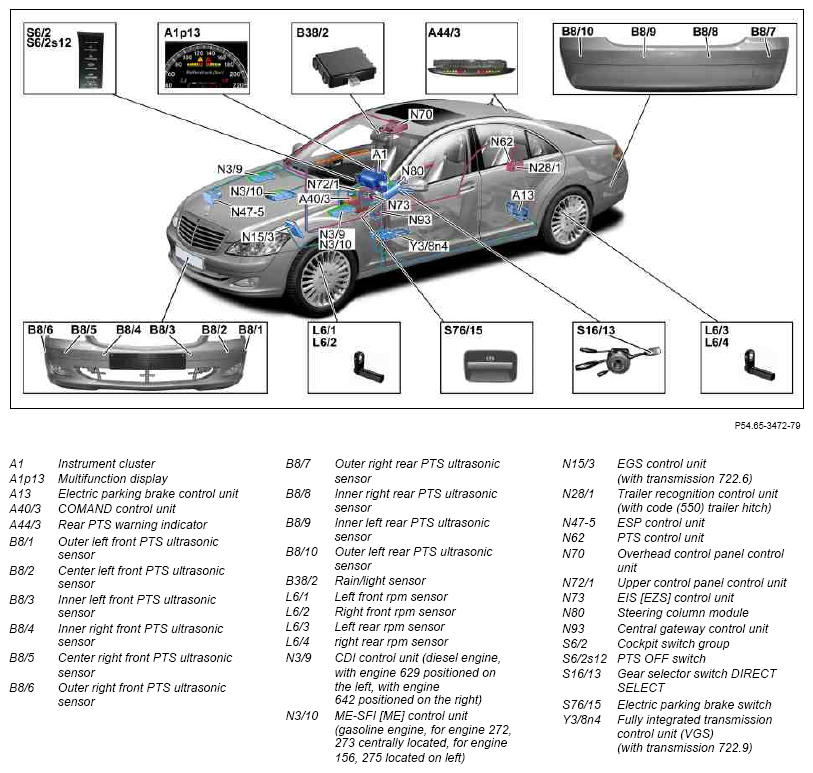

PARKTRONIC location of components - GF54.65-P-0003-01LE
MODEL 221.0 /1 up to 31.5.09 with CODE (220) PARKTRONIC as of Model Year 2009 /AEJ 08 MODEL 216.3 up to 31.8.10 as of Model Year 2009 /AEJ 08
Illustrated on model 221.0
Courtesy of MERCEDES-BENZ USA
